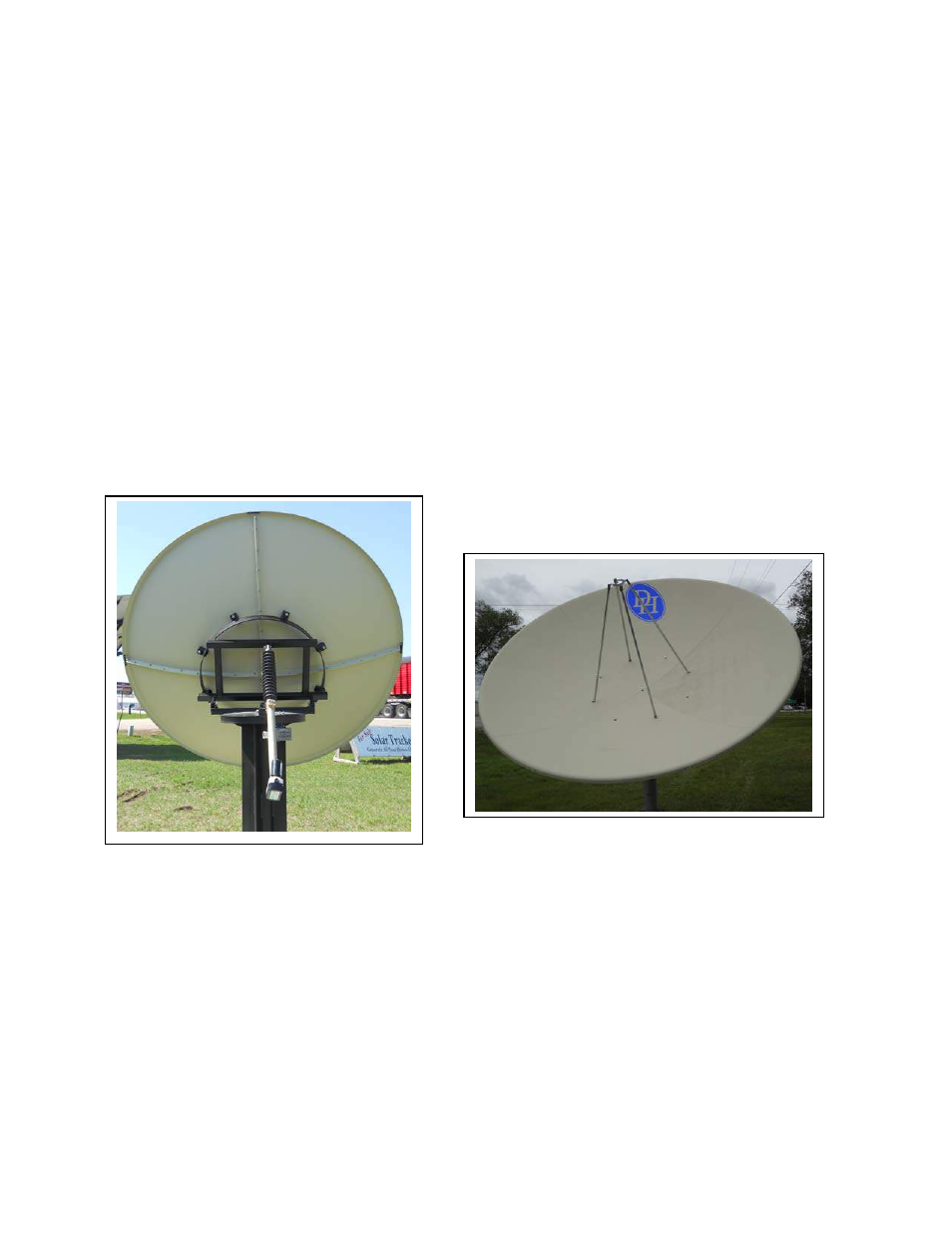

Final Inspection of the Antenna

After the assembly is complete, we recommend that you visually
look at the dish for FOUR things. 1. Make sure that both edges
are symmetrical. To accomplish this you should stand approx.
3M(10ft) away from the side of the dish. Eye ball the two edges to
confirm that they are even. This will confirm your dish is in
perfect shape. 2. Check to make sure that your feed is set to the
right focal distance. 3. Check that the feed is pointed precisely to
the center of the dish. 4. Look at all the nuts & bolts to confirm
that they are tight. After this final inspection you should be able to
install all your electronics and complete the wiring.
