S/PDIF Connector

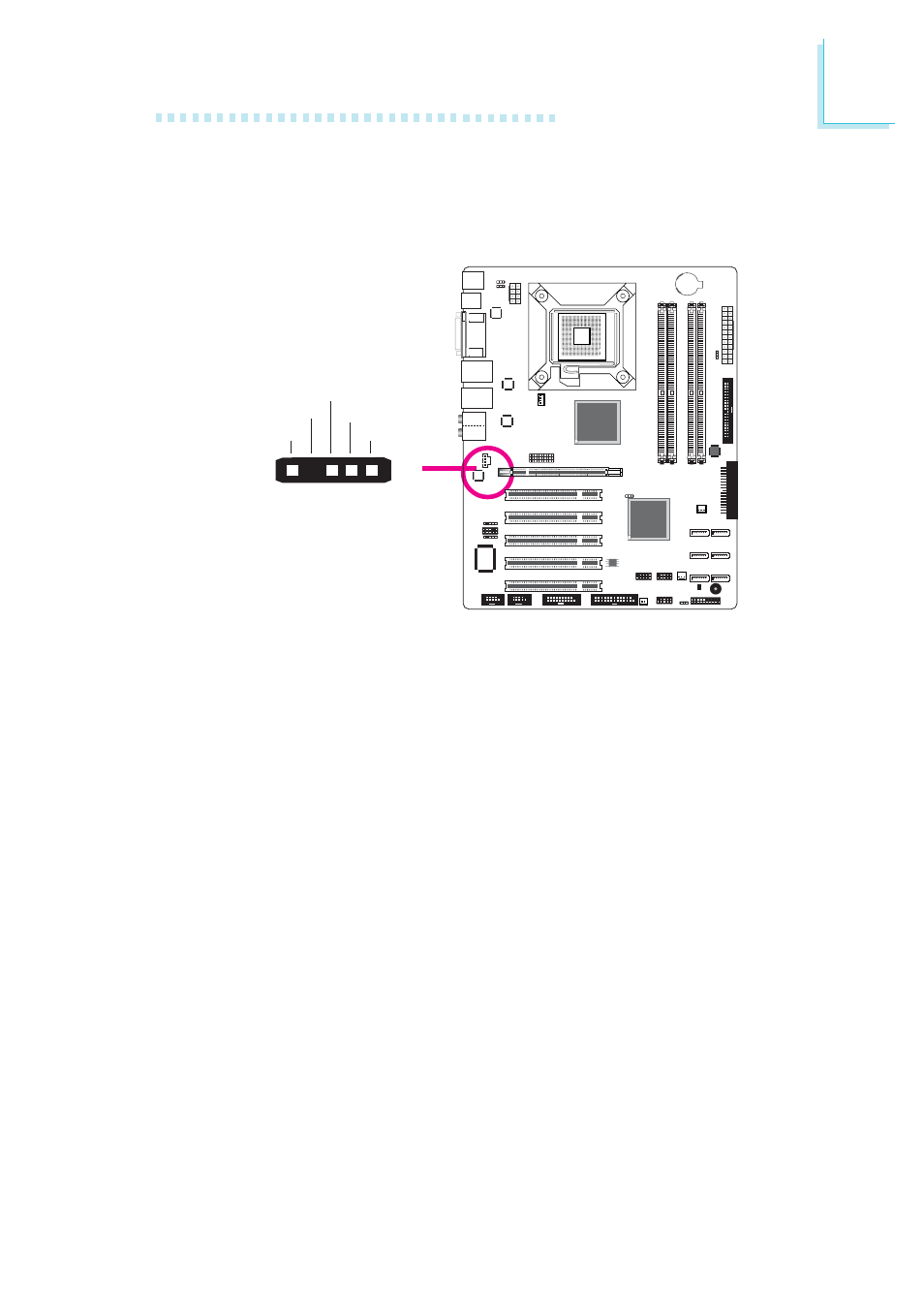

The S/PDIF connector is used to connect external S/PDIF ports. Your
S/PDIF ports may be mounted on a card-edge bracket.
Install the
card-edge bracket to an available slot at the rear of the system
chassis then connect the audio cable connector to this connector.
Make sure pin 1 of the audio cable connector is aligned with pin 1
of this connector.
W
1 5
+5V
Key
SPDIF out
GND
SPDIF in
