ENGLISH
Get
ting Star
ted
Connections
Pla
ybac
k
Remot
e Contr
ol
Inf
or
mation
Tr
oubleshooting
Specifications
Multi-Zone
Set
tings
NOTE
• Insert the AC plugs securely. Incomplete connections could cause
noise.
• Only use the AC outlets to plug in audio equipment. Do not use
them as power supplies for hairdryers or anything other than audio
equipment.
Wait until all connections have been completed before connecting the
power cord.
To household
power outlet
(AC 120 V, 60 Hz)
Power cord
Connection to the AC outlets
• These outlets supply power to external au-
dio equipment.
• Audio equipment with a total power con-
sumption of 120 W (1 A) can be connect-
ed.
• The power supply turns on and off together
with the on the main unit. When set
to “ON”, power is supplied from the outlet.
When set to “STANDBY”, no power is sup-
plied.
NOTE
When “HDMI Control” (vpage 28) is set
to “ON”, power is supplied constantly to
the AC outlet (UNSWITCHED).
Once Connections are
Completed
Turning the Power On
1
Press .
The power indicator lights red and the
power is set to the standby mode.
2
Press .
The power indicator flashes green and the
power turns on.
b Also press when in standby
mode, the power turns on.
When has been pressed, the input source set with the
is set. If a has been pressed, the input source
stored in the memory for the quick select function is set (vpage
50 “Saving frequently used settings (Quick Select Function)”).
NOTE
• Power continues to be supplied to some of the circuitry even when
the power is in the standby mode. When leaving home for long
periods of time or when traveling, either press
to turn off the
power, or unplug the power cord from the power outlet.
• When the ZONE2 power is switched on, and you want to switch off
the MAIN ZONE power, press .
Turning the Power Off
1
Press .
The power is set to the standby mode.
2
Press .
The power indicator turns off, and so does
the power.
This operation can also be performed by pressing a on
the main unit.
Front
Front

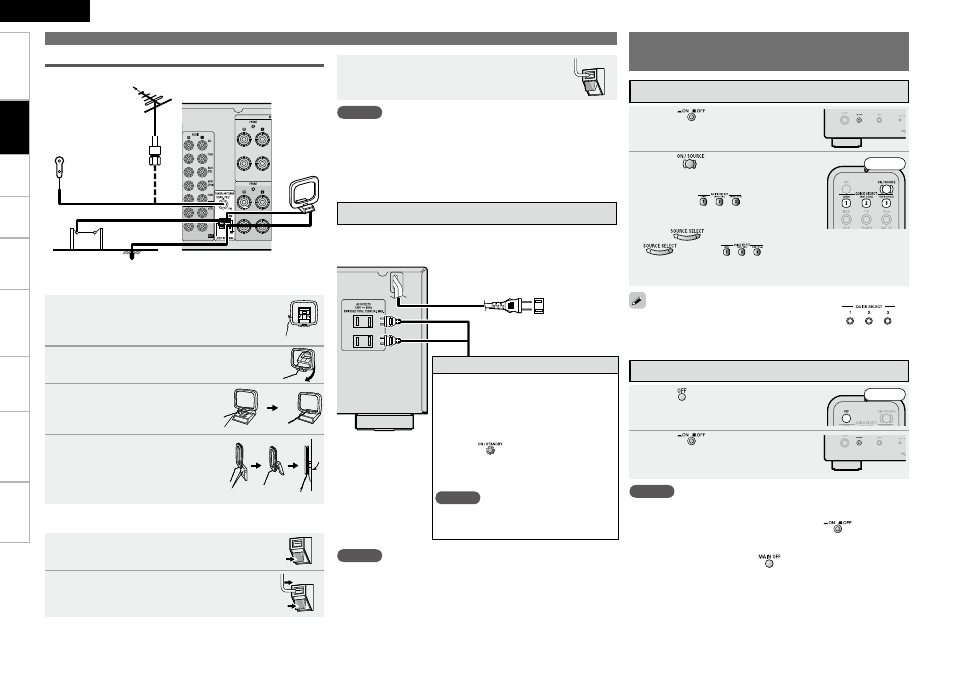

Connecting the Power Cord
Connecting Devices not Equipped with HDMI terminals
Direction of broadcasting station
AM loop
antenna
(supplied)
FM antenna
75 Ω/ohms
Coaxial cable
FM indoor antenna
(supplied)
Ground AM outdoor antenna
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
Antenna terminals
n AM loop antenna assembly
1
Remove the vinyl tie and take out the
connection line.
2
Bend in the reverse direction.
3
With the antenna on top of any
stable surface.
3
With the antenna attached to a
wall.
-1
-2
Mount
Installation hole Mount on wall, etc.
1
Push the lever.
2
Insert the conductor.
n Connection of AM antennas
3
Return the lever.
Connections
