Appendix A: Optional
Temperature Sensor A-1
Appendix A: Optional Temperature Sensor
The DataTrac displays may be ordered with
an optional temperature sensor. Follow the
supplied mounting instructions to attach the
temperature sensor and housing.

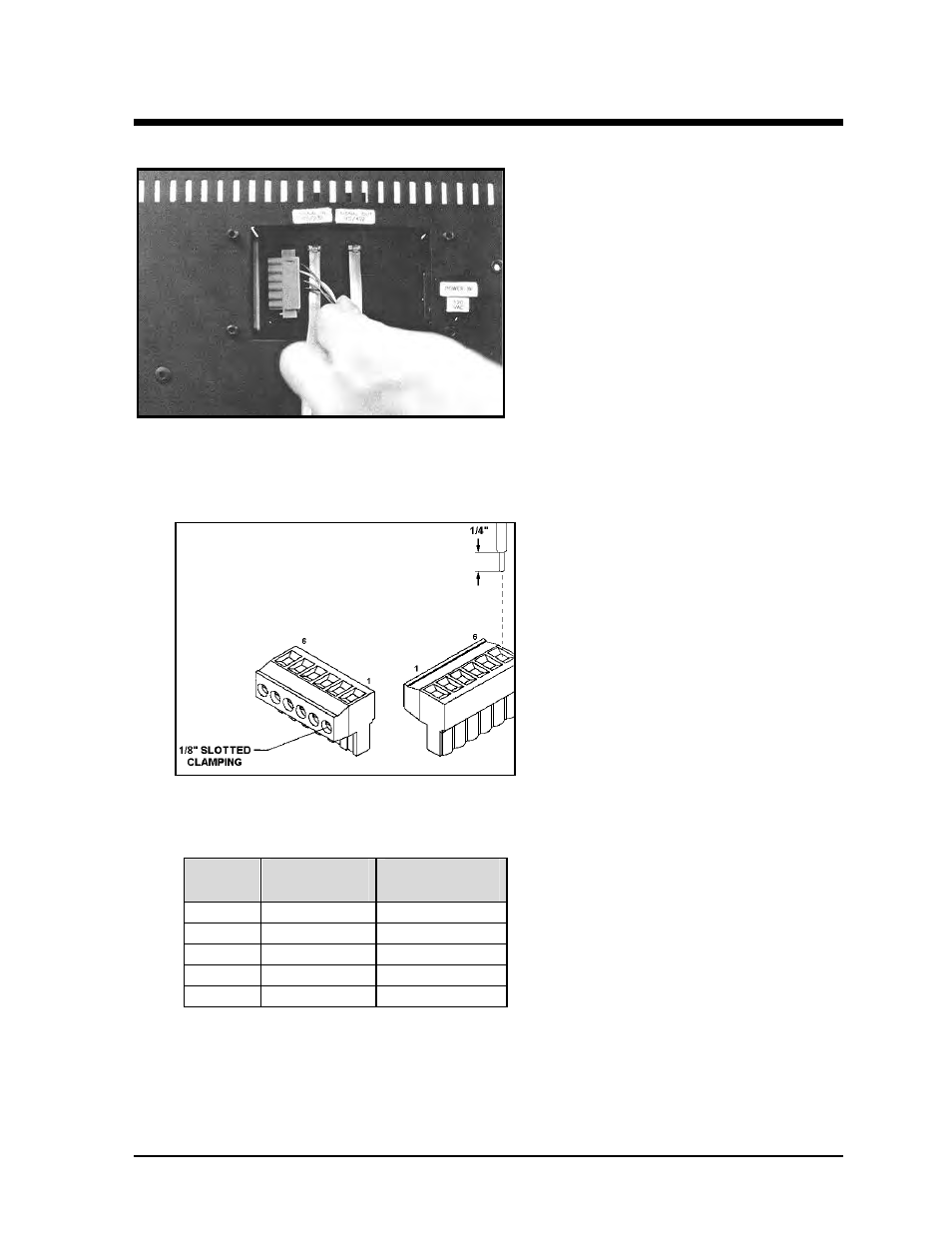

The temperature sensor cable connects to the
back of the display using the removable green
jack (refer to Figure 42).
The pin orientation of the jack is shown in Figure 43.
Connect the temperature sensor cable to the jack as follows:
Display
Cable
Wires
Temperature
Sensor
Pin 1 Green P
Pin 2 White N
Pin 3 Red +V
Pin 4 Black GND
Pin 5 Bare N/A
Figure 42: Temperature Sensor Cable Connection
Figure 43: Pin Orientation
