Specifications
Model Number of
Shelves
Shelf Area Storage
Capacity
H.P. V/Hz/Ph Amps NEMA
Plug
Ship Weight
ST4532N 1 3.97ft 2 6.9ft 3 1/3 115/60/1 9.50 5-15P 280lbs/127kg
STD4532N NA NA 2.7ft 3 1/3+ 115/60/1 12.00 5-15P 315lbs/143kg
TO EDGE OF DRAWER
NOSE OF UNIT 19.60" [49.77]
31.50" [80.01] 32.13" [81.61]
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
29.55" [75.1]
2.50" [6.30]
4.00" OR 6.00" DEEP PANS ON TOP
4.00" DEEP PANS ONLY ON BOTTOM
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor
area and out the front of the unit. Any restriction to this air flow path will void the warranties.
PLEASE NOTE:
Air flow through the louver on the back of the unit is not necessary for operation, however, any
air which passes through the louver is beneficial.

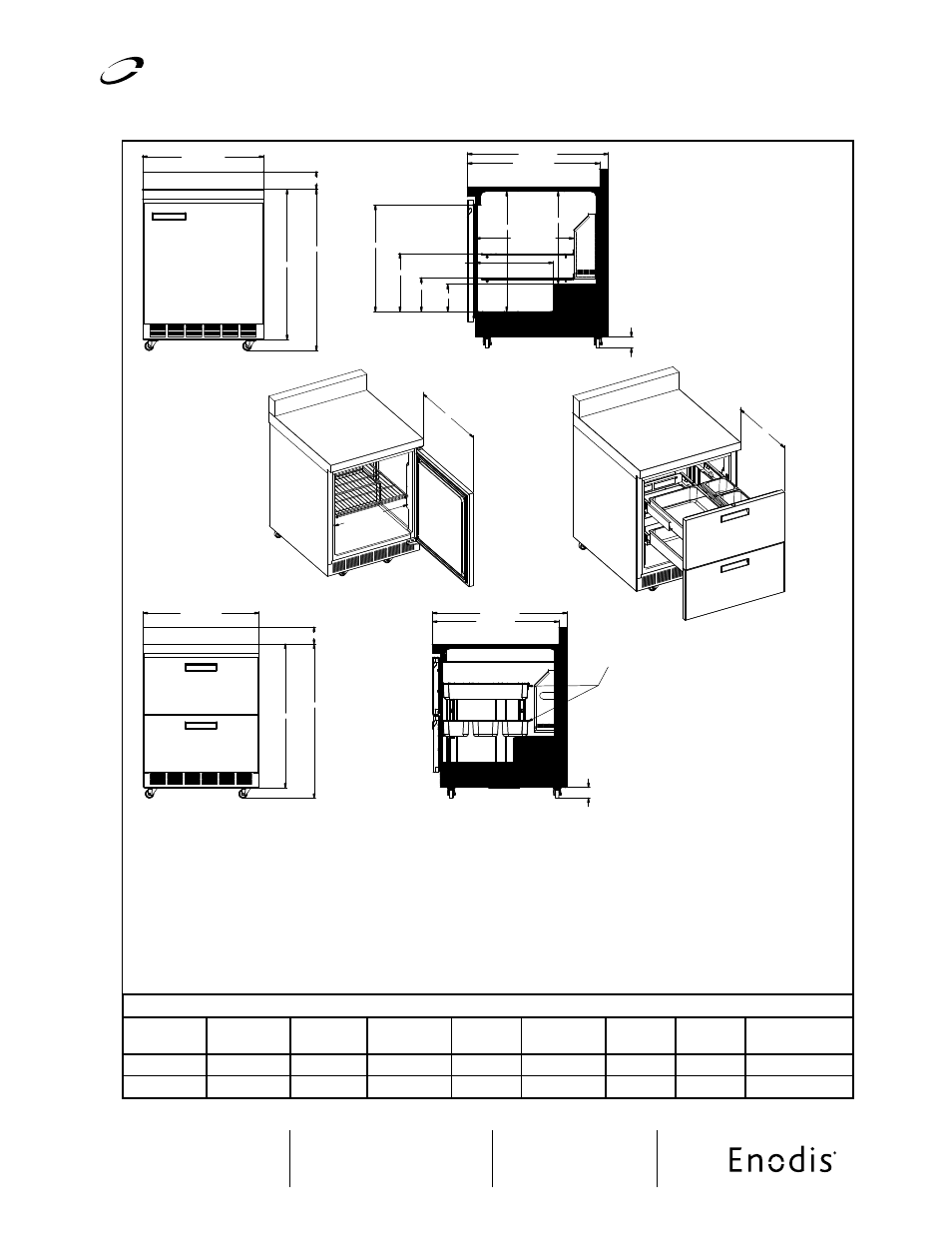

ST4532N ISO VIEW
ST4532N Elevation View
STD4532N ISO View
STD4532N Elevation View STD4532N Right Side View
4/
./3%
).3)$%
3(%,&
!,4
4/
./3%
).3)$%
3(%,&
!,4
4/
./3%
).3)$%
3(%,&
!,4
TO EDGE OF DRAWER
NOSE OF UNIT
19.60" [49.77]
31.50" [80.01] 32.13" [81.61]
33.59" [85.31]
36.00" [91.40]
4.00" [10.20]
29.55" [75.1]
2.50" [6.30]
4.00" OR 6.00" DEEP PANS ON TOP
4.00" DEEP PANS ONLY ON BOTTOM
ST4532N Right Side View
Delfield reserves the right to make changes to the design or specifications without prior notice.
