Cybex Owner’s Manual
11

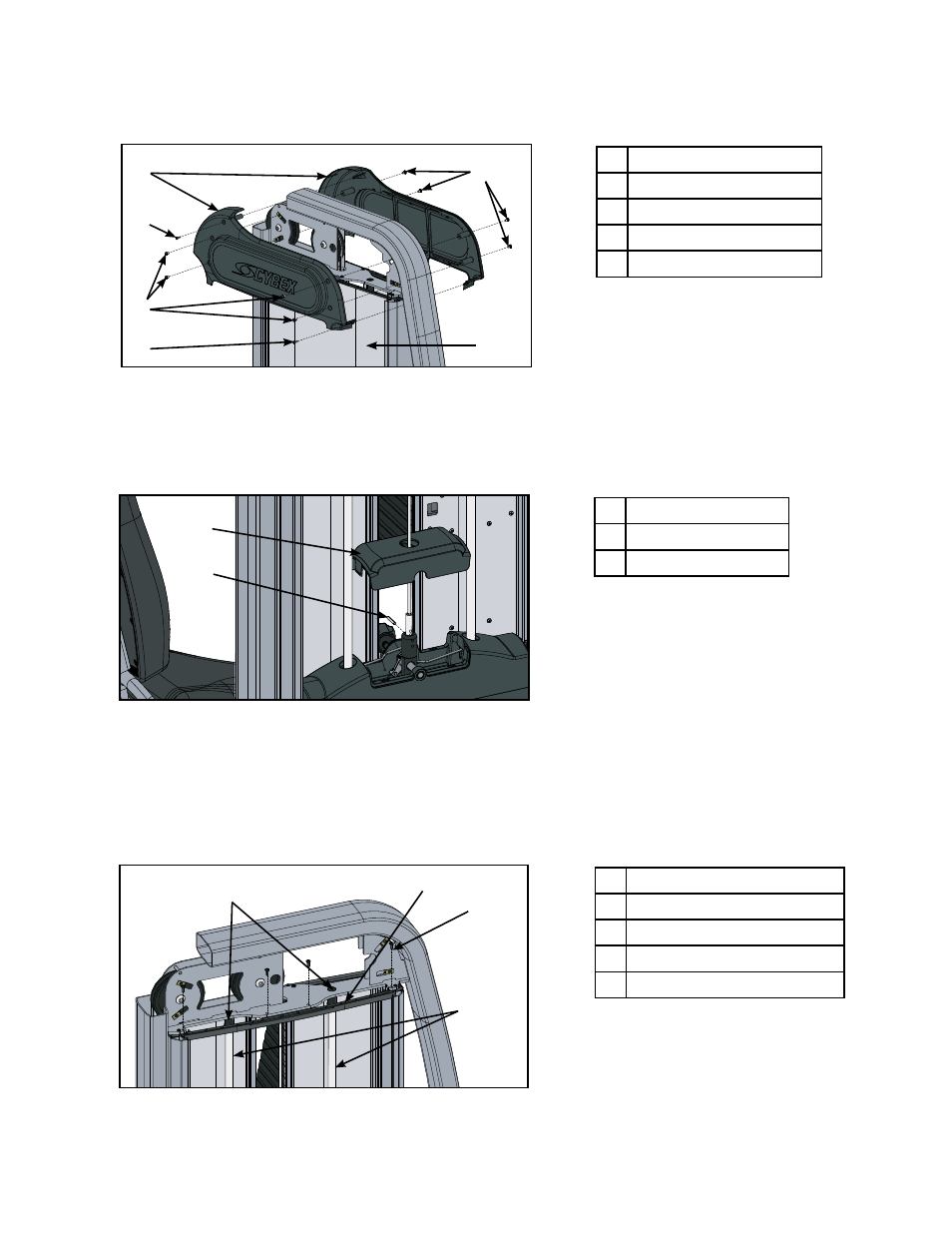

2. Remove ten screws securing top covers (front and back) to frame using a Phillips
screwdriver.
1
2
4
2
3 1
Description
1 10-32 screw (8)
2 # 8 screw (2)
3 Top cover (2)
4 Back panel
3. Guide front top cover down cable to gain access to pulley assembly.
4. Slide back panel upward and remove.
5. Squeeze sides of top weight cover together and lift up.
1
2
Description
1 Top weight cover
2 Spiral pin
6. Remove spiral pin connecting cable assembly using a hammer and a 3/16” pin punch.
Remove weight plates
1. Turn the increment weight adjusting knob to select 0 lbs (0 kg).
2. Remove four Phillips head screws and plastic mount for guide rod access.
1
2
3
4
Description
1 Phillips head screw (4)
2 Plastic mount
3 Top guide rod cap (2)
4 Guide rod (2)
3. Remove top guide rod caps. Top guide rod cap contains a compression spring that will fly if
grasp is not released slowly. Slide spring loaded top guide rod cap down guide rod until cap
is clear of frame. Slowly release grasp of top guide rod cap and set aside.
