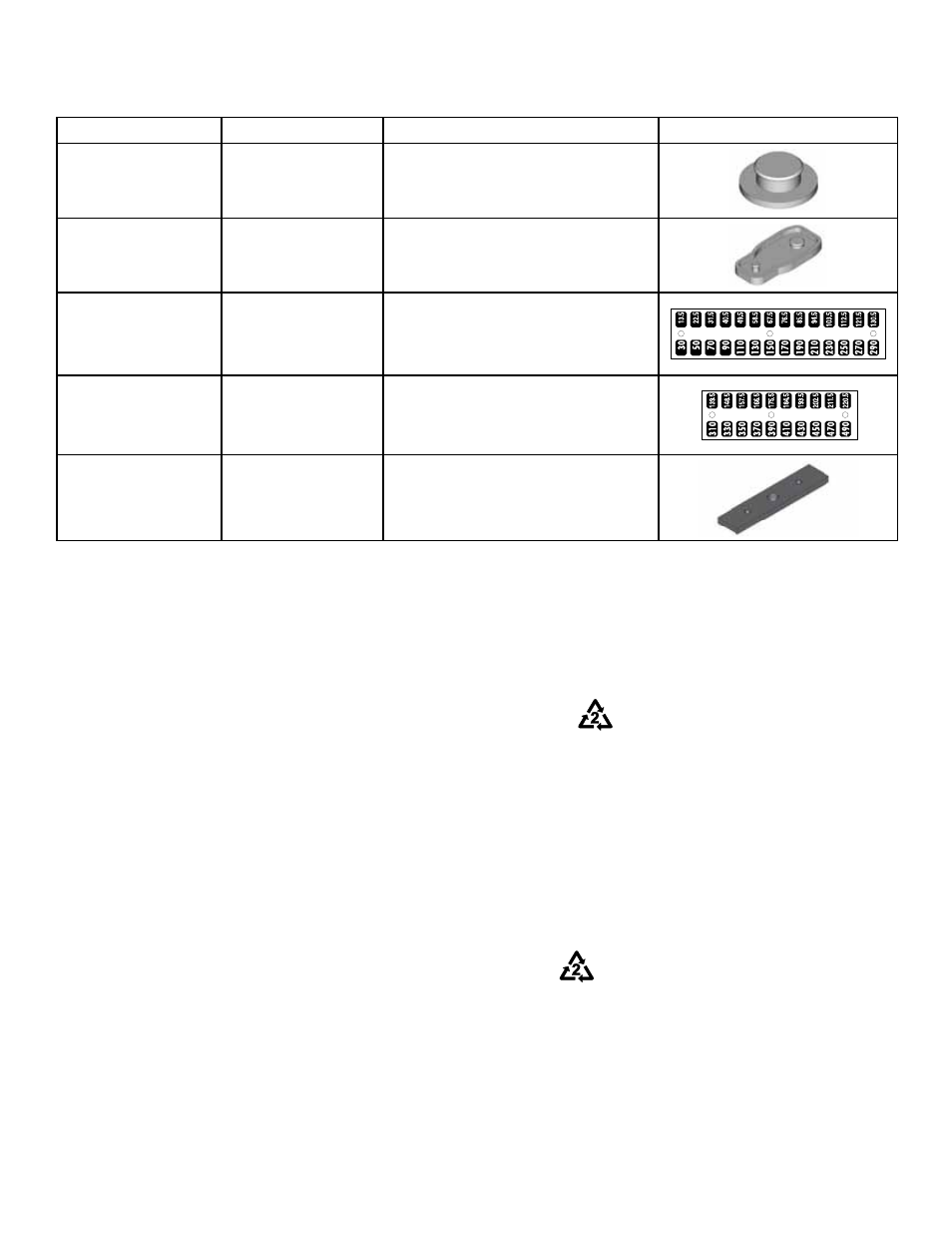

Verify parts list shown below
Qty Part Number Description Diagram
2 20000-339 Foot Pad
5 20000-376 Foot Pad
1 12000-560
Decal, Weight Plate
(30-290)
125
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE DATE
REV. DWG. NO. SCALE SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
SHEET
OF
EXCEPT AS NOTED
GENERAL TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015 ANGLES ± 1° FEATURES SHOWN PERPENDICULAR OR PARALLEL SHALL BE SO WITHIN ± 1°
REMOVE ALL BURRS BREAK SHARP EDGES .005/.010 R SURFACE FINISH INDICATED PER ANSI B46.1-1985
GENERAL MACHINING
DIMENSIONS
IN INCHES
DATE DATE
THIS NOTE REFERS TO ALL PLASTIC PARTS AND ASSEMBLIES CONTAINING PLASTICS. RAW MATERIAL AND COMPONENTS ON SUB-ASSEMBLIES AND ASSEMBLIES MUST COMPLY WITH EUROPEAN DIRECTIVE RoHS 2002/95/EC. REMOVE CARBURIZATION AND SCALE FROM LASER AND PLASMA CUT EDGES
12000-560 1:1
9/14/05 REL
DECAL, WT PLATE (30 - 290)
B 2 2
9/16/05 BB
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD. HORIZONTAL SCALE 80%. TRACKING -50.
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD.
1 12000-561
Decal, Weight Plate
(310-490)
125
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE DATE
REV. DWG. NO. SCALE SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
SHEET OF
EXCEPT AS NOTED
GENERAL TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015 ANGLES ± 1° FEATURES SHOWN PERPENDICULAR OR PARALLEL SHALL BE SO WITHIN ± 1°
REMOVE ALL BURRS BREAK SHARP EDGES .005/.010 R SURFACE FINISH INDICATED PER ANSI B46.1-1985
GENERAL MACHINING
DIMENSIONS
IN INCHES
DATE DATE
THIS NOTE REFERS TO ALL PLASTIC PARTS AND ASSEMBLIES CONTAINING PLASTICS. RAW MATERIAL AND COMPONENTS ON SUB-ASSEMBLIES AND ASSEMBLIES MUST COMPLY WITH EUROPEAN DIRECTIVE RoHS 2002/95/EC. REMOVE CARBURIZATION AND SCALE FROM LASER AND PLASMA CUT EDGES
12000-561 1:1
9/14/05 REL
DECAL, WT PLATE (310 - 490)
B 2 2
9/16/05 BB
.50
0
.750 1.016 2.032 3.048 4.064 5.080 6.096 7.112 8.128 9.144
1.47
1.69
Ø .406 3 PLCS
3.38
10.75 SPLIT BACKING
HERE
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD. HORIZONTAL SCALE 80%. TRACKING -50.
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD.
24 4000C101 Weight Stack Plate
If Eagle machine CAN fit through doorway
Two people will be required for this procedure
1. Move to desired location.
2. Remove the four shipping cones using a 3/4” socket or wrench.
3. Remove bolt from cones with hammer. Recycle cones.
4. Attach foot pads to each foot of frame.
5. If weight stack needs to be installed, follow procedure for installing weight stack and weight
plate decal.
If Eagle machine CANNOT fit through doorway.
Two people will be required for this procedure
1. Remove the four shipping cones using a 3/4” socket or wrench.
2. Remove bolt from cone with hammer. Recycle cone.
Disconnect cable
1. Make a note of the current cable routings and connections.This will assist you in reinstalling
them properly.
