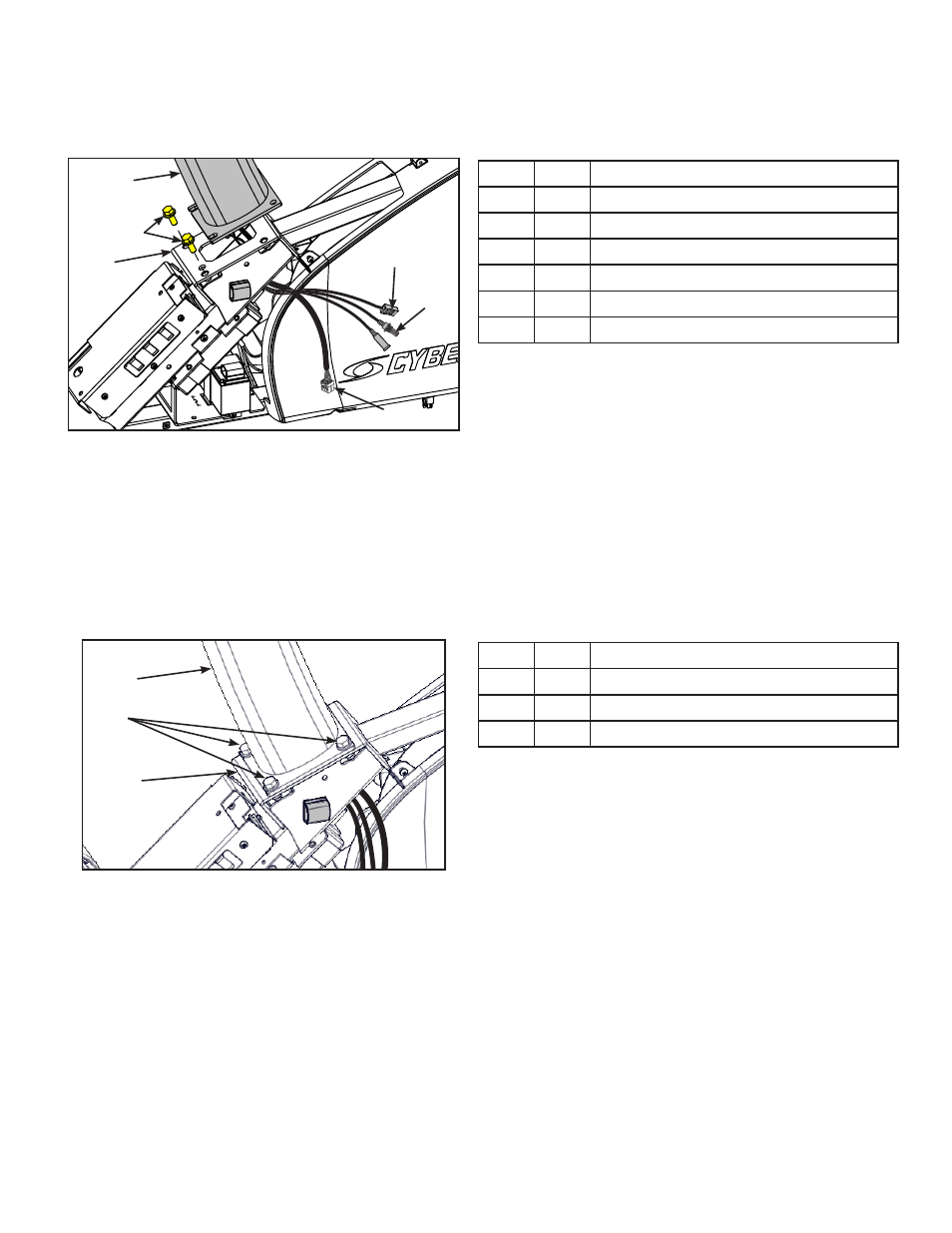

Install console assembly to base assembly.
1. Hand thread two screws into the base assembly.
1
2
3 6
4
5
Item Description
1 Console Assembly
2 13 Screws (2)
3 1 Base Assembly
4 Coax Cable
5 Display Cable
6 Ethernet Cable
The console assembly will need to be supported during steps 2 through 5.
2. Insert the display, coax, power, and ethernet cable through the frame to the left side. Do not
pinch or damage the cables during assembly.
3. Place the console assembly in the correct position on the base assembly by sliding into
position onto the two mounting screws.
4. Hand thread the other two screws.
2
3
1
Item Description
1 Console Assembly
2 13 Screws (2)
3 1 Base Assembly
5. Securely fasten the four screws with a 1/2” socket wrench.
