INSTALLATION
Mounting
The AI-SRVR is designed for mounting in an industrial enclosure or wiring
closet using either set of the provided mounting hardware listed below:
TS-35 DIN Rail Mounting Panel Mounting
DIN rail clip Panel mounting bracket
4-40 screws, pan-head (2) 4-40 screws, flat-head (4)
For quick snap-mounting onto TS-35 mm DIN rail, a DIN rail clip is
pre-attached to the back of the enclosure with two #4-40 pan-head screws.
If the clip is removed, the unit can be panel-mounted by extending the top
and bottom brackets which are shipped in retracted position. The extended
brackets can then anchor the unit to a wall or other flat surface with two #8
pan-head screws (not provided). The left illustration of Figure 1 shows a
rear view of the unit with brackets in retracted position. The right
illustration of Figure 1 shows the brackets extended and secured to the unit
enclosure using the same screws that were used in the retracted position.

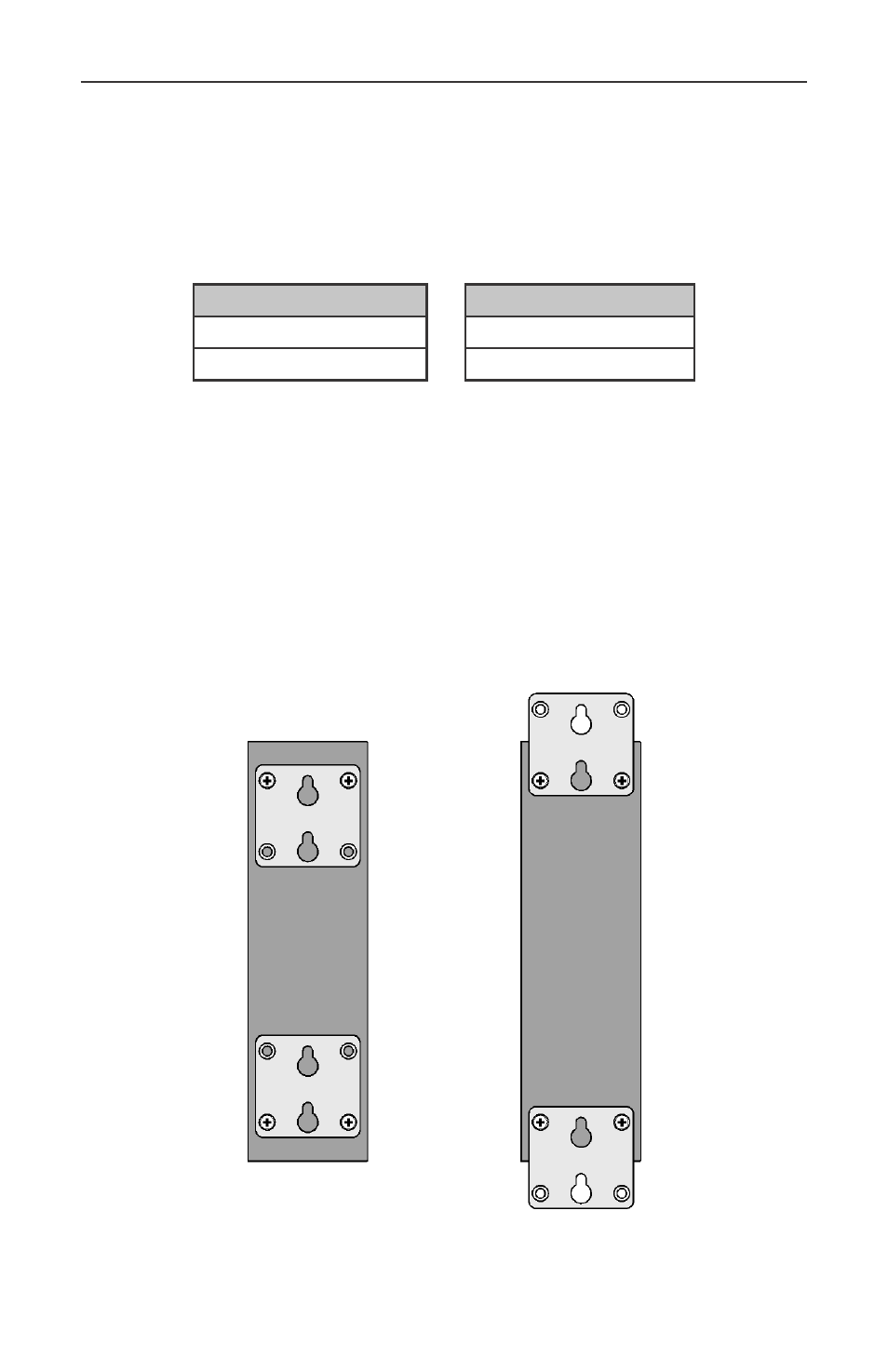

Figure 1 — Using the Panel-Mounting Brackets
