Comtech EF Data SkyWire Quick Start Procedure User Manual
Page 5
AN213 - Rev. 1.3
Skywire Quick Start Guide
5
The user gets to see which demodulators are installed and/or enabled. No remotes are active at
this point.
4.0 SkyWire Modem Configuration
Using the SkyWire top-level menu system, select the Configure / Satellite Link / Modulator menu.

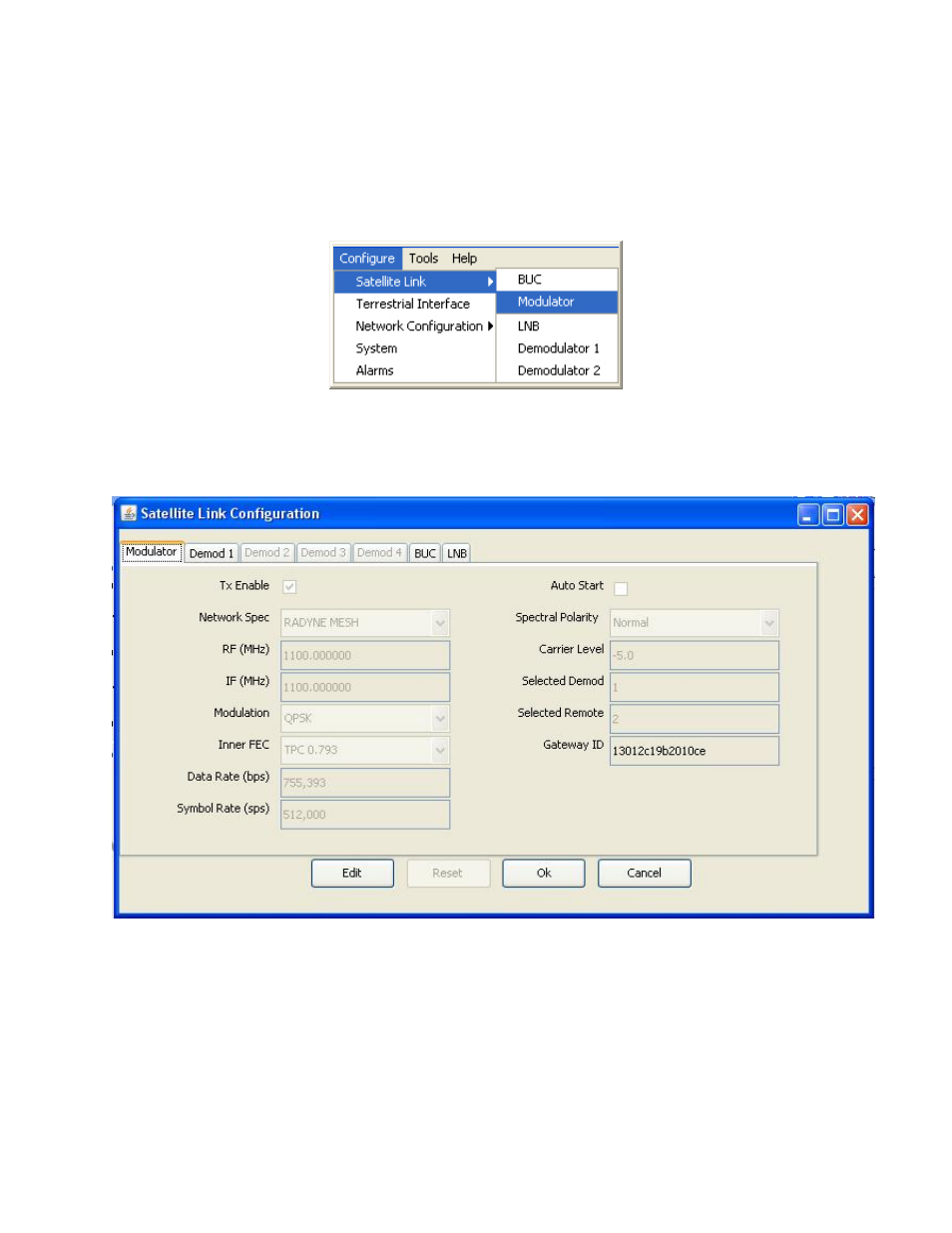

Figure 4-1 MDI Modulator Menu Selection
The satellite link configuration window groups all modem system components in one area through
the use of tabs. Select a tab then press the Edit button to make modifications. It is that simple.
Figure 4-2 Modulator Tab Satellite Link Configuration
