Breakout Panel
Revision 2
Connectors and Switches
MN/UB530.IOM
2–9
2.2.3.1
Adapting the V.35 25-Pin D Connector on the UB-530 to the
UB-300 Pinout
The connectors on the UB-530 and UB-300 Universal Breakout Panels are identically
wired, except for the 25-pin D connector which, is used for the V.35 data interface. The
UB-530 uses a standard RS-530 pinout, while the UB-300 pinout is non-standard. The
following information describes how to adapt the UB-530 to the UB-300 pinout.
An adapter is added to the UB-530 breakout panel that converts to the UB-300 pinout.
Figure 2-2 illustrates the adapter that plugs directly into J3 of the UB-530, and
Table 2-3 provides the wiring information for conversion from RS-530 to the UB-300
pinout.
Male Connector
Plugs Into
UB-530 Interface
25 Pin D Female
Connector With
UB-300 Pinout
UB-530
To
UB-300
Adapter
UB-530
25 Pin D Connector
For V.35 Interface
To
Equipment
J3

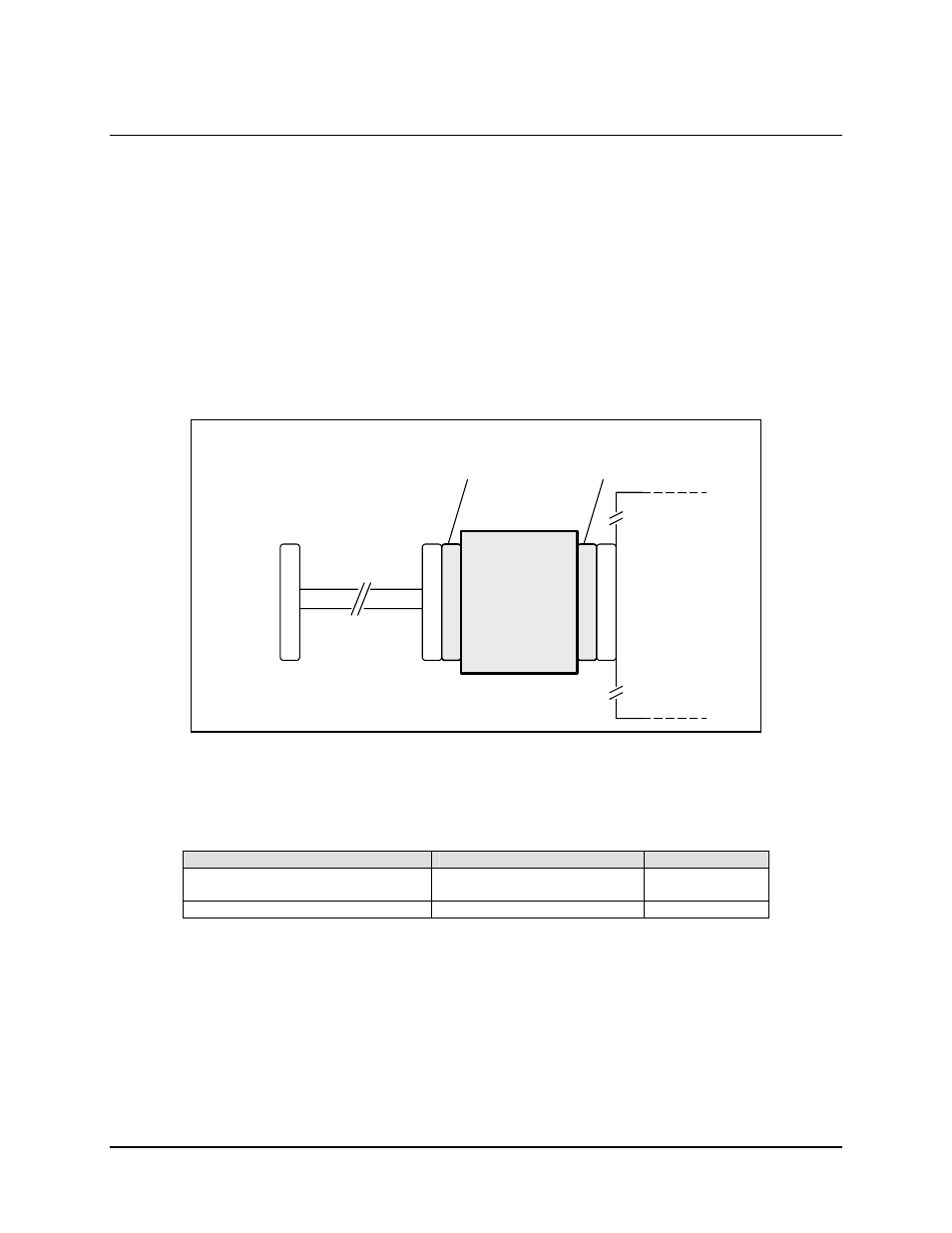

Figure 2-2. UB-530 To UB-300 Adapter For 25-Pin V.35 Connector (J3)
These adapters are available from several sources. The ones listed below are solder-less
and make conversion quick and easy:
Nomenclature
Web Site
Model/Part No.
Patton Electronics Company
(tel: 301 975 1000),
( http://ww.patton.com ):
Model 8X-MF
B&B Electronics (tel: 815 433 5100),
( http://www.bb-elec.com ):
232SMFJB
