A.3.4 Modem-to-User, Quad E1 ‘Y’ Splitter Adapter Cable, (2X) DB-15F  DB-9M

This optional adapter cable may be purchased from Comtech EF Data to adapt the Balanced G.703 or Auxiliary G.703 DB-9F modem

connections to a DB-15F connector pair. The DB-9M end of this cable plugs into the ‘To User’ connector side (DB-9F) of the CA-0000071

‘Y’ Splitter cable shown in Figure A-8.

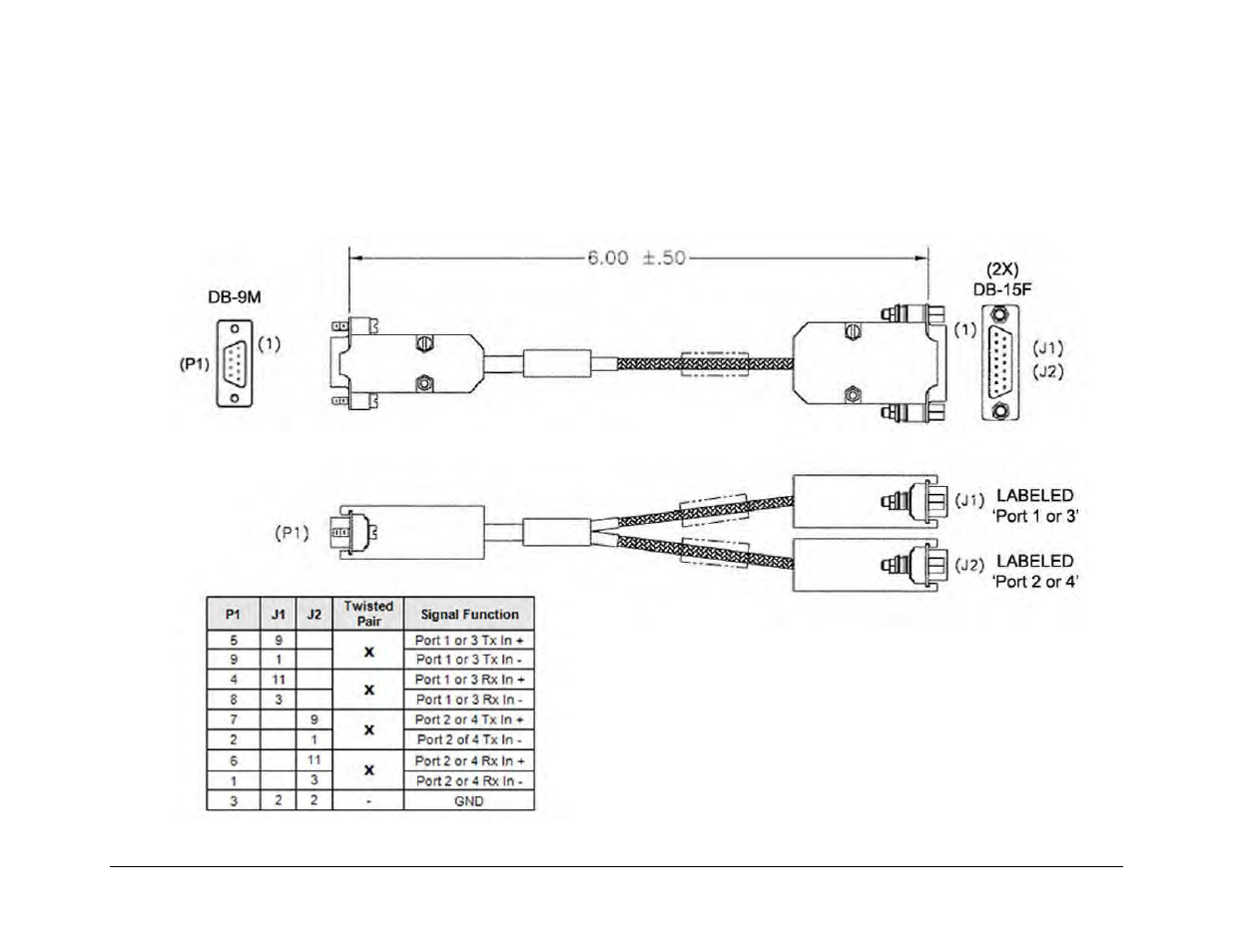

Figure A-8. 1:1 Quad E1 User Data ‘Y’ Splitter Adapter Cable (CA-0000163)
