2-20
Magellan
®
9500

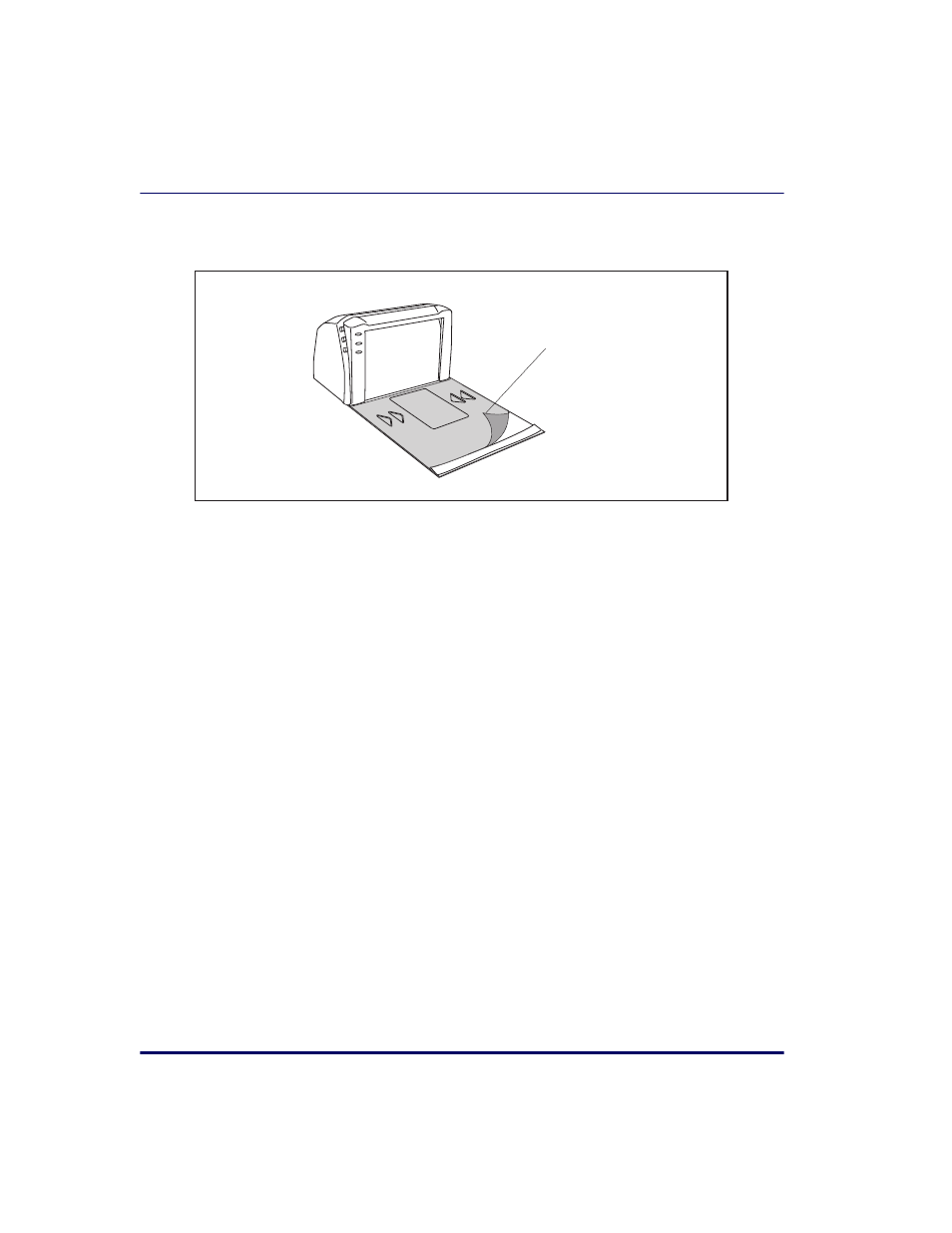

Figure 2-10. Remove Protective Vinyl
•
Proceed to the
instructions below.
Operational Verification
Follow these steps to ensure that your unit has arrived undamaged and is
fully functional before installing it in the counter and connecting it to
your POS system.
1. Connect the scanner and the EAS antenna to the EAS Controller
Box (see
) and power-on the controller
box.
2. If the unit is a scanner/scale, connect the Remote Scale Display to
the proper connector on the unit’s connector panel (refer to
). Note that if the Remote Scale Display is not con-
nected, a scanner power-up Selftest will sound a long, low beep, and
the number “8” will appear on the 7-segment display indicating a
remote display error. Power-down, connect a known-good Remote
Display to the appropriate port, and restart to correct this problem.
Alternatively, you can disable the Remote Display using program-
ming bar codes (see
for more informa-
tion).
3. Connect the power cable at the scanner, then at the AC outlet.
Protective vinyl
MUST be removed
from the
platter
before use.
