4. Remove the outlet pressure
gauge, tank pressure gauge, and
quick connect (if equipped) from
the regulator.
5. Remove the regulator. NOTE: If
regulator comes in contact with
tank and is unable to be
removed follow these steps:
a. Using an adjustable wrench
loosen pressure relief tube
nut at air tank and pressure
switch.
b. Lift retaining clip from handle
and remove handle.
Motor
This motor has a manual thermal
overload protector. If the motor
overheats for any reason, the
overload protector will shut off the
motor. The motor must be allowed to
cool down before restarting. To
restart:
1. Place the On/Auto/Off lever in
the "Off" position.
2. Allow the motor to cool.
3. Depress the red reset button on
the motor.
4. Place the On/Auto/Off lever in
the "On/Auto" position to restart
the motor.
Pressure Switch - Replacement
Pressure loads
beyond design
limits may cause tank rupture or
explosion. Pressure switch
operation is related to motor HP,
tank rating, and safety valve
setting. Do not attempt to adjust,
remove, or defeat the pressure
switch, or change and modify any
pressure control related device. If
replacement is necessary the same
rated switch must be used.
Contact a trained service
technician for replacement.

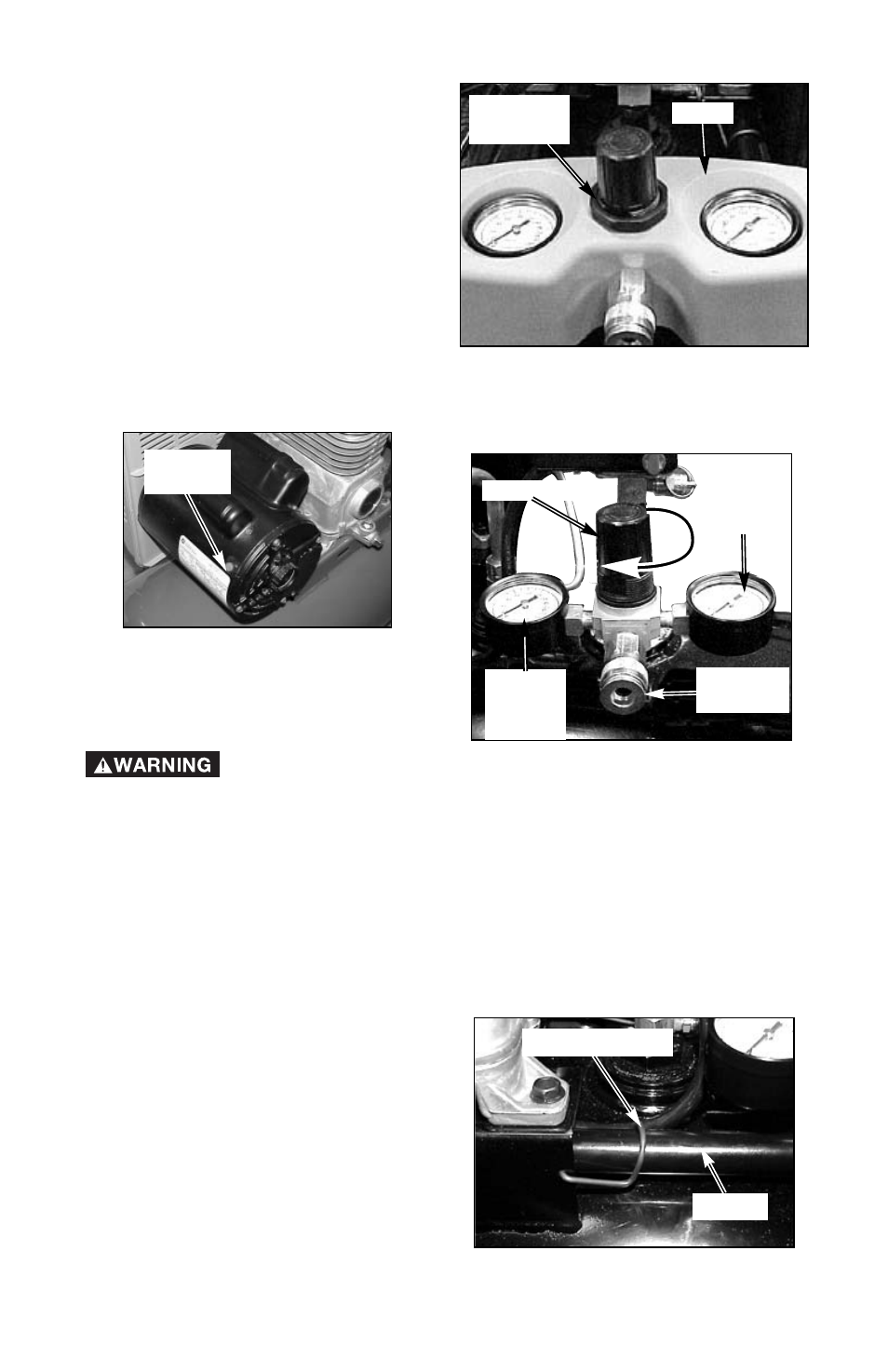

To Replace Regulator
1. Release all air pressure from air
tank. See "To Drain Tank" in the
Maintenance section.
2. Unplug air compressor.
3. Remove the regulator ring and
remove the console cover.
Regulator
Ring
Cover
Outlet
Pressure
Gauge
Regulator
Tank
Pressure
Gauge
Retaining clip
Handle
Quick
Connect
Reset
Button
