Dakota Digital LED Tail Lights for 1972 Impal LAT-NR181 User Manual
Page 2
MAN#650246

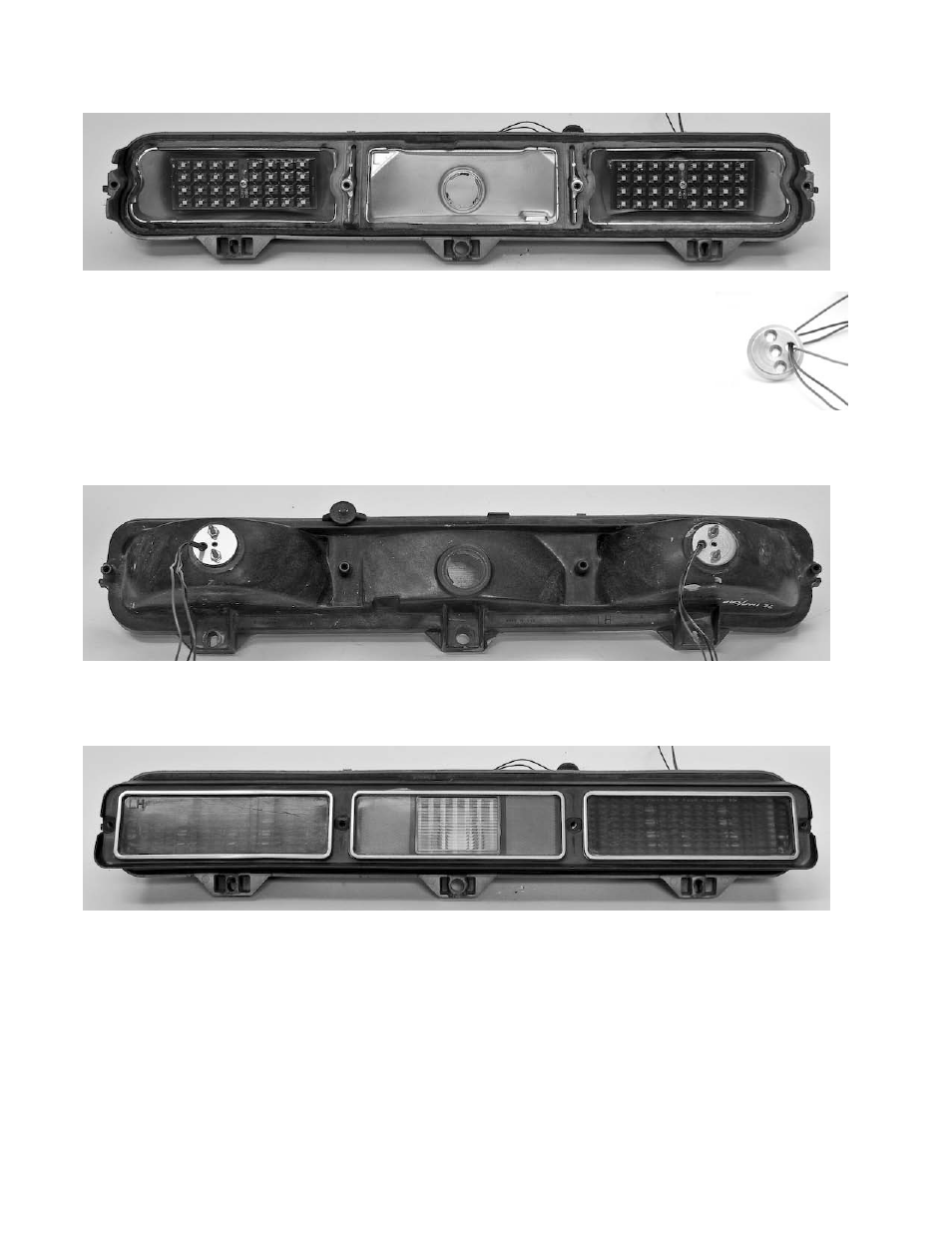

7. Insert the new LED assembly into the hole where the original bulb and connector were located.
Use caution when feeding the wires through the socket opening to avoid damaging the wire
insulation.
8. Feed the wires through the large hole in the back plate. Guide the
back plate onto the back side of the housing. The flat side of the
mounting disk should be toward the outside and the side with the slight
raised center should go in towards the housing. This will align the
mount in the original housing.
9. Secure the back plate with the supplied #6 nuts.
10. Install the lens and reassemble the housing, insuring all gaskets are intact and in place.
