UC4560N Under
count
er
Reduc
ed Heigh
t F
ron
t-Br
ea
thing S
elf-
C
on
tained Under
coun
ter
Fr
eez
er Bases
Printed in the U.S.A.
DSUC4560N
03/13
Delfield reserves the right to make changes to the design or specifications without prior notice.
INSTALLATION NOTE:
Refrigeration system is designed so that air will flow under the unit, through the compressor
area and out the front of the unit. Any restriction to this air flow path will void the warranties.
Specifications
Model
# of
Shelves
Shelf
Area
Volume H.P. V/Hz/Ph Amps
Nema
Plug
Ship Weight
Energy
KWH/Day
UC4560N 2 7.19ft 2 16.9ft 3 1/3 115/60/1 12.0 5-15P 411lbs/186kg 7.40

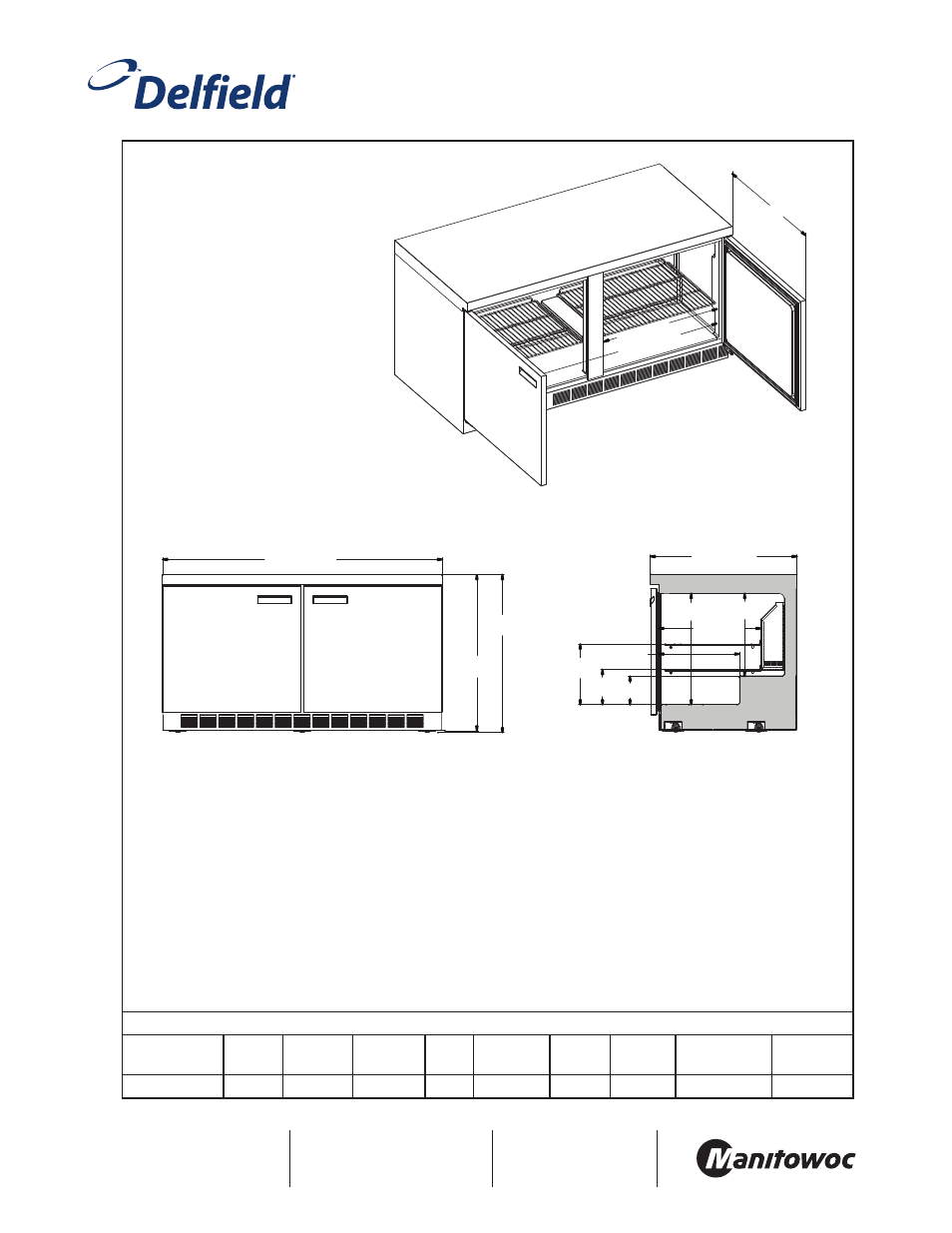

UC4560N ISO View
UC4560N Elevation View UC4560N Right Side View
31.50" [80.01]
Shelf
Alt. Shelf
33.43"
[85cm]
34.25"
[87cm]
25.94" [65.89]
55.75" [141.61]
60.13" [152.72]
21.94" [55.73]
23.79"
[60.43]
17.68"
[44.91]
7.53"
[19.10]
12.98"
[33.00]
17.35"
[44.08]
6.11"
[15.52]
30.66" [77.88]
