3
i
mporTanT
s
afeTY
i
nsTruCTions
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE: 22.
SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL a.
TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING PAN - you may be burned.
b.
DO NOT USE WATER, including wet dish cloths or towels - a violent steam explosion may result. c.
Use a fire extinguisher ONLY if: d.
You have a Class ABC extinguisher, and you already know how to operate it. •
The fire is small and contained in the area where it started. •
The fire department is being called. •
You can fight the fire with your back to an exit. •
p
roduCT
s
peCifiCaTions
G
eneral
S
pecificationS
ALL MODELS
Blower
600 CFM (1200 for units with 2
blowers) with electronic speed control
Blower Speeds 4
Lights 12 Vac, 20 W halogen
Filters Baffle type, dishwasher safe
Exhaust 8-inch
Finish 430 stainless steel
Voltage
120 Vac, 60 Hz (see below for current
rating)
Circuit
Requirement
120 Vac, 15 Amp grounded, dedicated
circuit, minimum
MODEL SPECIFIC
SPECIFICATION
MODEL
Blowers Lights Filters
Maximum
Current Draw
DHI361
1 4 1
3.75 A
DHI421
1 4 1
3.75 A
DHI482
2 4 2
6.75 A
DHI542
2 6 2
7.10 A
DHI602
2 6
3 7.10 A

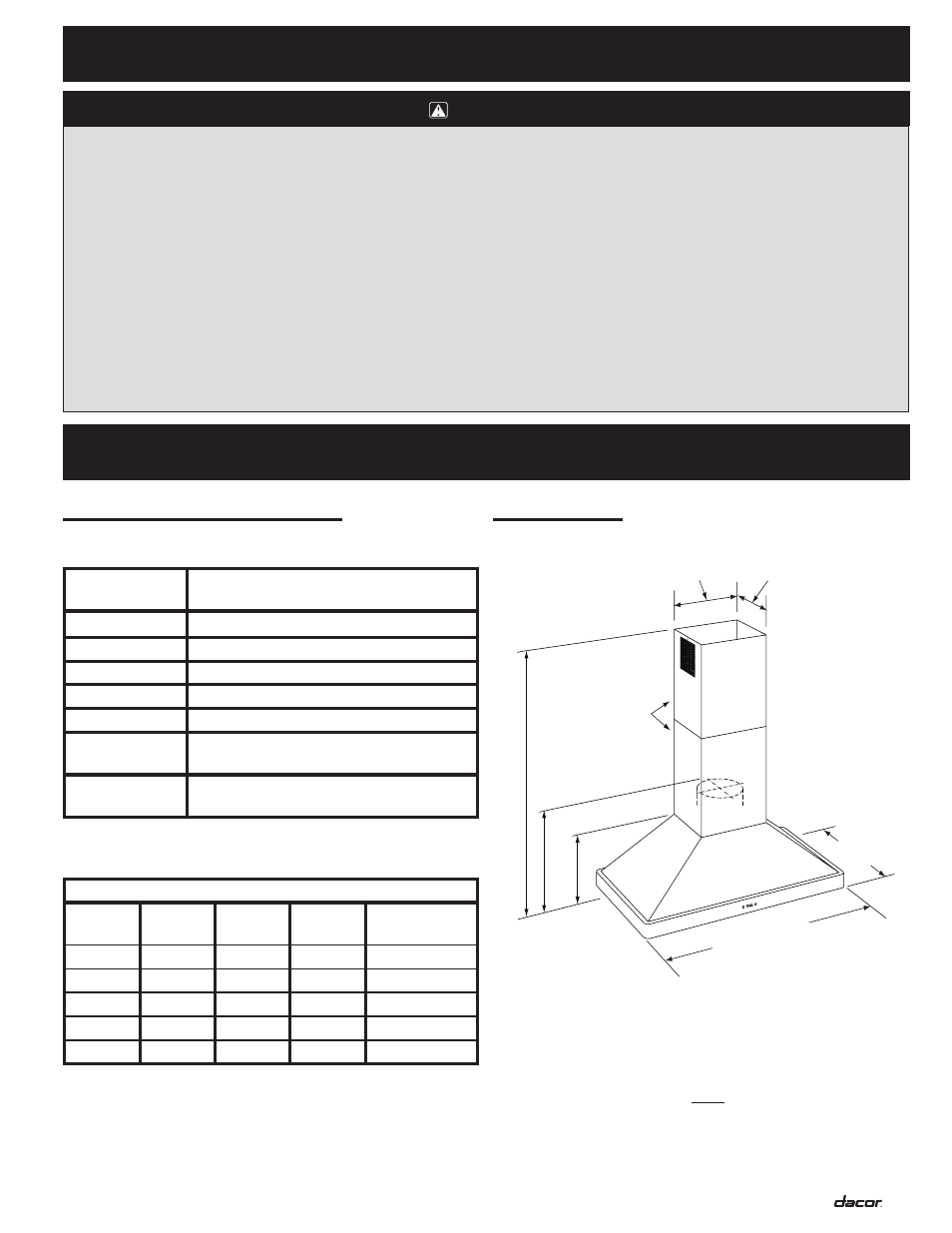

D
imenSionS
* 18” 1/4 on models DHI482, DHI542 and DHI602
** 30” on models DHI482, DHI542 and DHI602
IMPORTANT:
The minimum installed distance from the
hood to the cooktop surface must be no less than 30
inches. The minimum specified distance may be higher
for the particular range or cooktop in use. Check the
manufacturers specifications for the cooktop or range.
36” (91.4 cm) - 42” (106.7 cm)
48” (121.9 cm) - 54” 137.2 cm)
60” (152.4 cm)
25 5/8”
(65.1 cm)**
15 ¾” (40.0 cm)
Chimney
12 9/16” (31.9 cm)
12 ½” (31.8 cm) 15 ½” (39.4 cm)*
28” (71.1 cm) to 36” (91.4 cm)
Tolerances: +1/16”, -0 (+1.6 mm, -0),
unless otherwise stated
