WARNING
Do not use screws to attach the duct work to the •
hood exhaust outlet. Use duct tape only. Screws may
prevent the damper flaps on the top of the hood from
opening.
Install the duct work system. Lift the chimney up •
and reach inside the framework to access the hood
exhaust. Attach the duct to the hood exhaust with duct
tape alone. Use sheet metal screws (not provided) and
duct tape on all the remaining duct system joints.

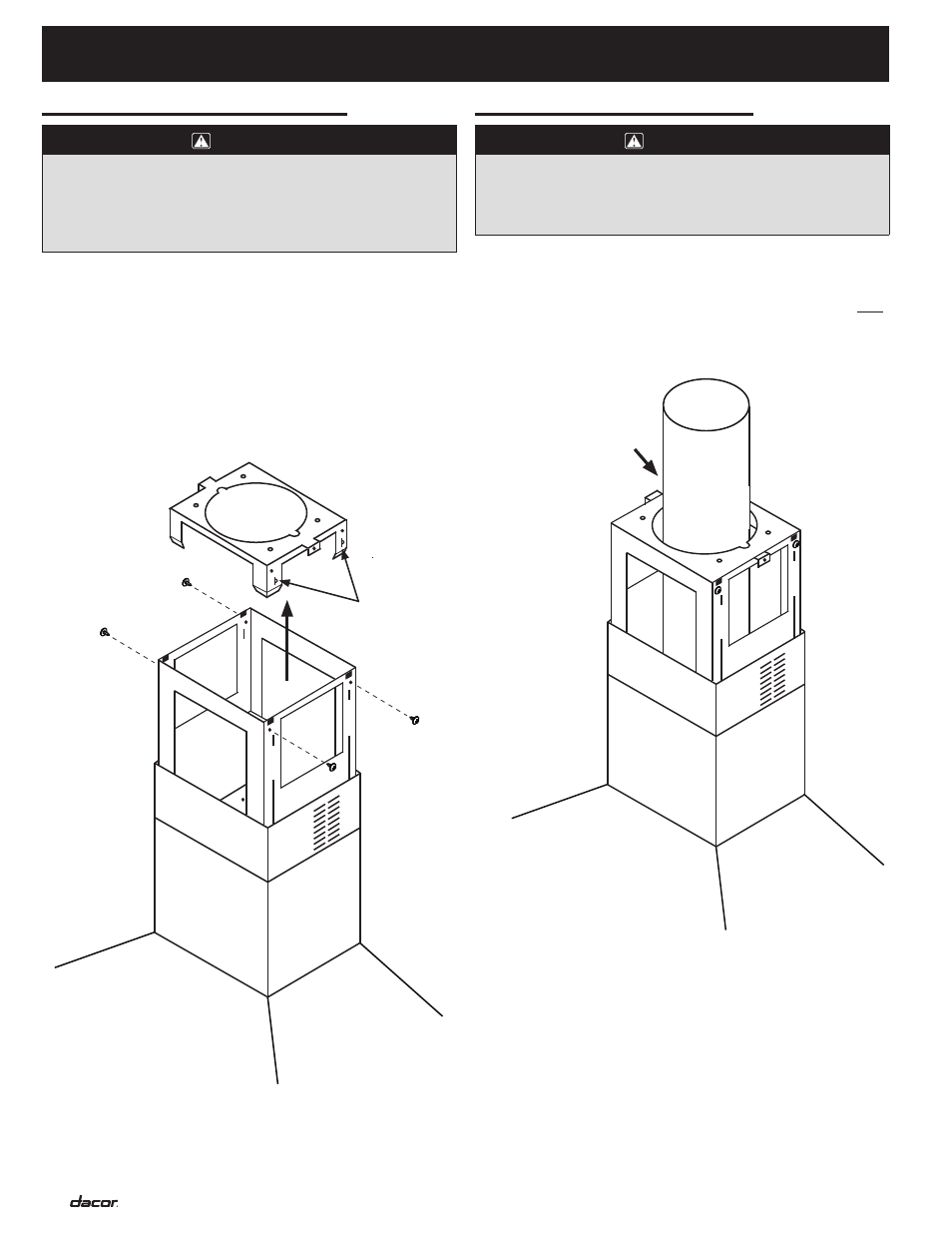

DUCT WORK
THROUGH CEILING,
CONNECTS TO
EXHAUST OUTLET
INSIDE FRAMEWORK
h
anGinG the
r
anGe
h
ooD
WARNING
To prevent personal injury, do not rely on the •
mounting springs to hold the hood assembly in place
on the ceiling. Once the hood is hooked in place
IMMEDIATELY secure the framework to the mounting
bracket as described below.
Before raising the hood into position, lift it up and orient 1.
it so that the control panel faces the same direction as
the front of the cooktop or range.
Lift the hood assembly up on both sides and slip the
2.
end of the framework over the mounting bracket. Push
up until all four mounting springs protrude out of the
mounting slots on the top of the framework.
Attach the framework to the mounting bracket using
3.
four self-tapping screws.
MOUNTING
SPRINGS
