9
Determine the 11.
required framework height
. To deter-
mine the required framework height:

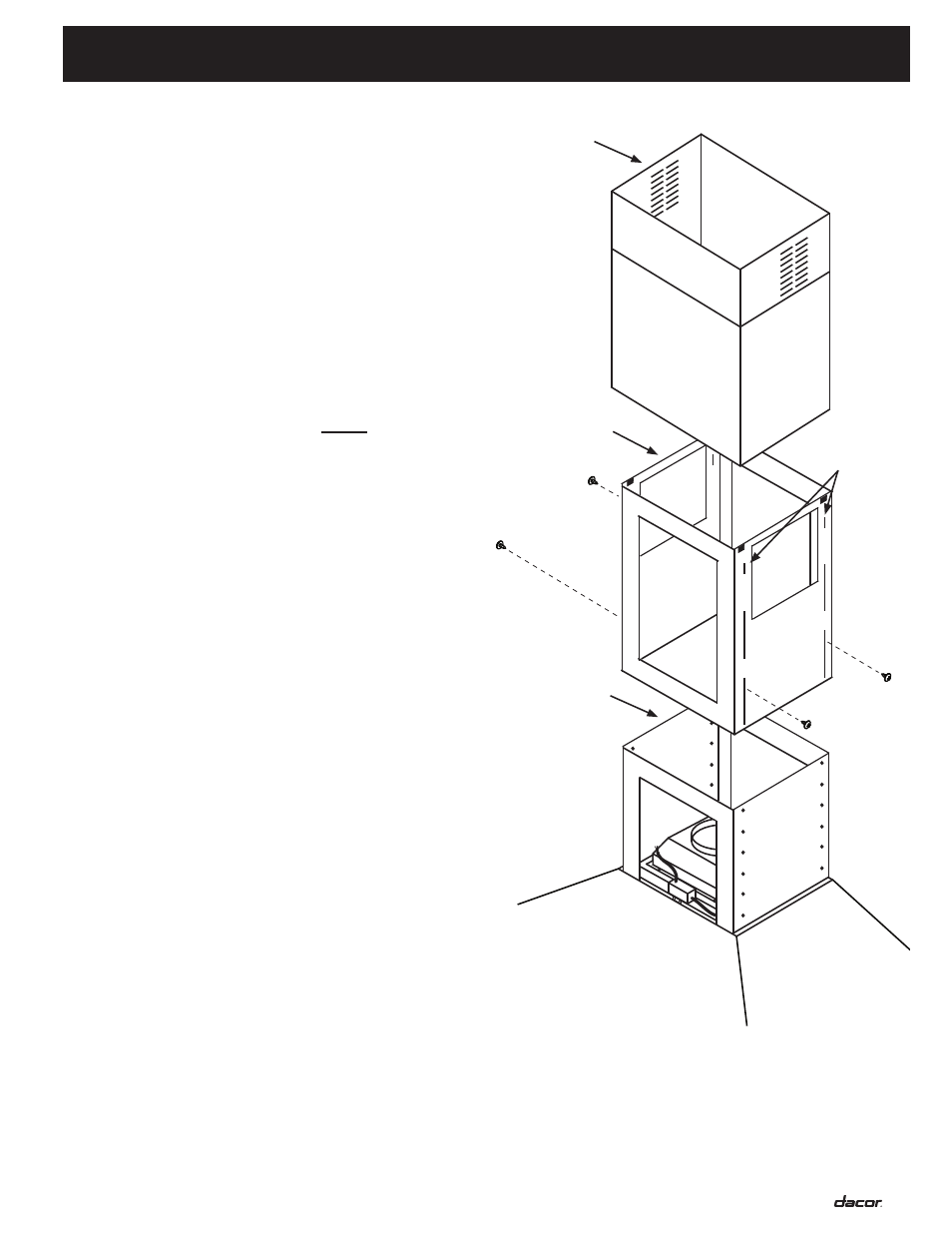

Put the top framework piece over the bottom framework 12.
piece. The mounting slots on the top piece must be up.
Use four machine screws to fasten the top piece to
13.
the bottom piece. The total height of the two pieces
together must equal the required framework height
determined above.
Remove the protective plastic covering from both
14.
pieces of the chimney assembly. Do not remove the
protective tape strips from the inside. They protect the
telescoping pieces from scratching during installation.
Carefully slide both sections together so that only the
15.
vents on the top section show.
Hold the chimney vertically with the vents up.
16.
Carefully put the chimney over the top of the 17.
framework, taking care not to scratch the surfaces.
Make sure the Dacor logo faces the same side as the
control panel.
Make sure any wires are tucked in behind the chimney
18.
and are not pinched.
i
nsTallaTion
i
nsTruCTions
Measure the distance from the ceiling to the •
cooktop.
Subtract the height at which the hood will be
•
mounted (30” minimum) and the hood thickness
(12 1/2”) from the distance measured.
CHIMNEY
HOOD
TOP
FRAMEWORK
BOTTOM
FRAMEWORK
MOUNTING
SLOTS
