Setting up your TV combo
To connect separate VHF and UHF antennas (75 ohm VHF and 300 ohm UHF twin-lead
wires:
1 Connect the VHF 75 ohm cable and UHF 300 ohm twin-lead wires to the combiner (not
included).
2 Attach the combiner to the RF IN jack on the back of your TV combo.
Connecting cable TV
To connect basic cable (no converter box):
• Connect the 75 ohm coaxial cable to the cable outlet and the RF IN jack on the back of
your TV combo.
To connect a cable converter box:
1 Connect a 75 ohm cable from the cable outlet to the IN jack on the cable converter
box.
2 Connect a 75 ohm cable from the OUT jack on the converter box to the RF IN jack on
the back of your TV combo.

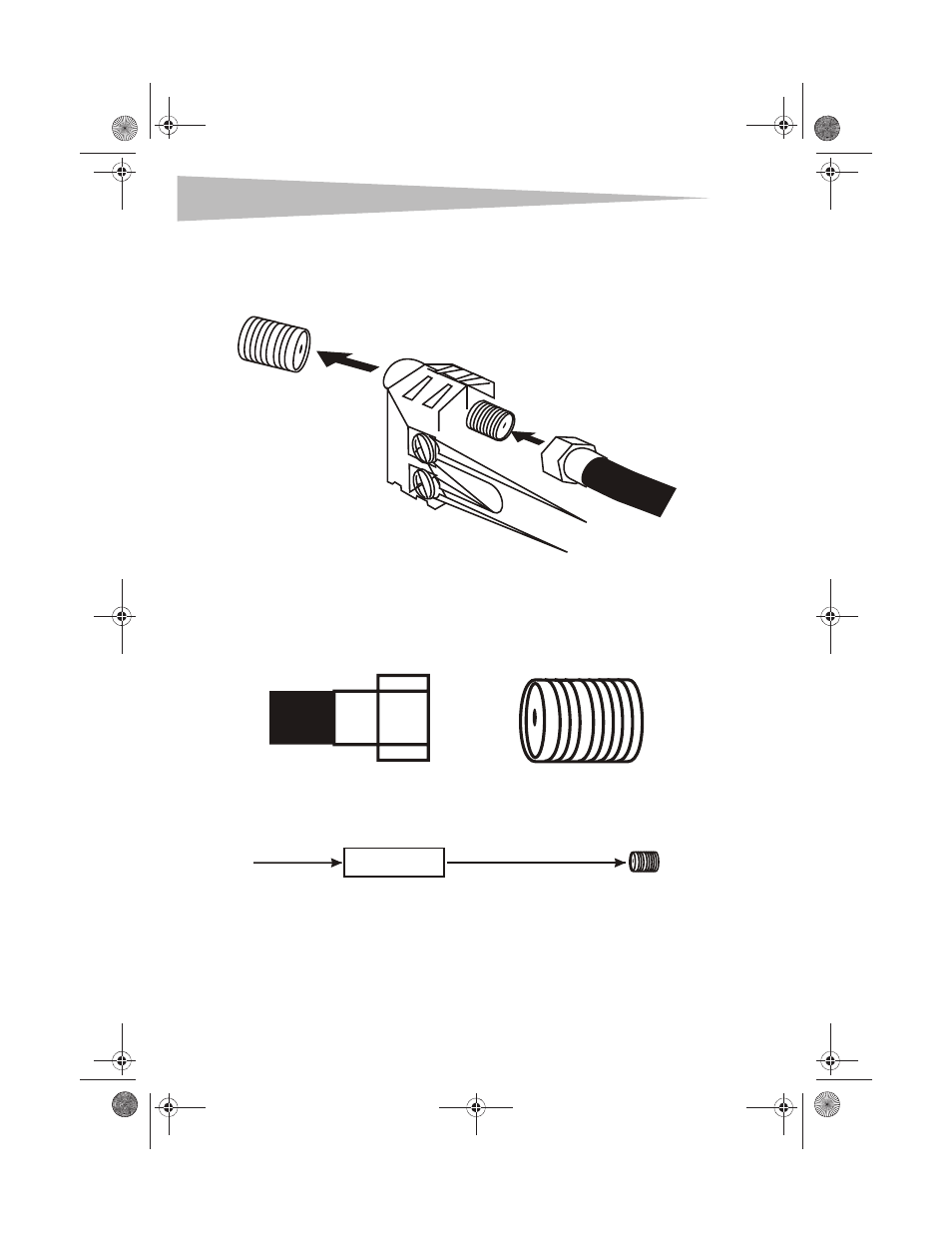

RF IN jack
Combiner
VHF 75 ohm
cable
UHF 300 ohm
twin-lead wire
75 ohm
coaxial cable
RF IN jack
Incoming
cable
Converter box RF IN jack
