Cascadia – BDI 8254 CASCADIA User Manual
Page 3
CASCADIA
8254 8257
ASSEMBLY INSTRUCTIONS
3
BDIUSA.COM [email protected]
Step 3

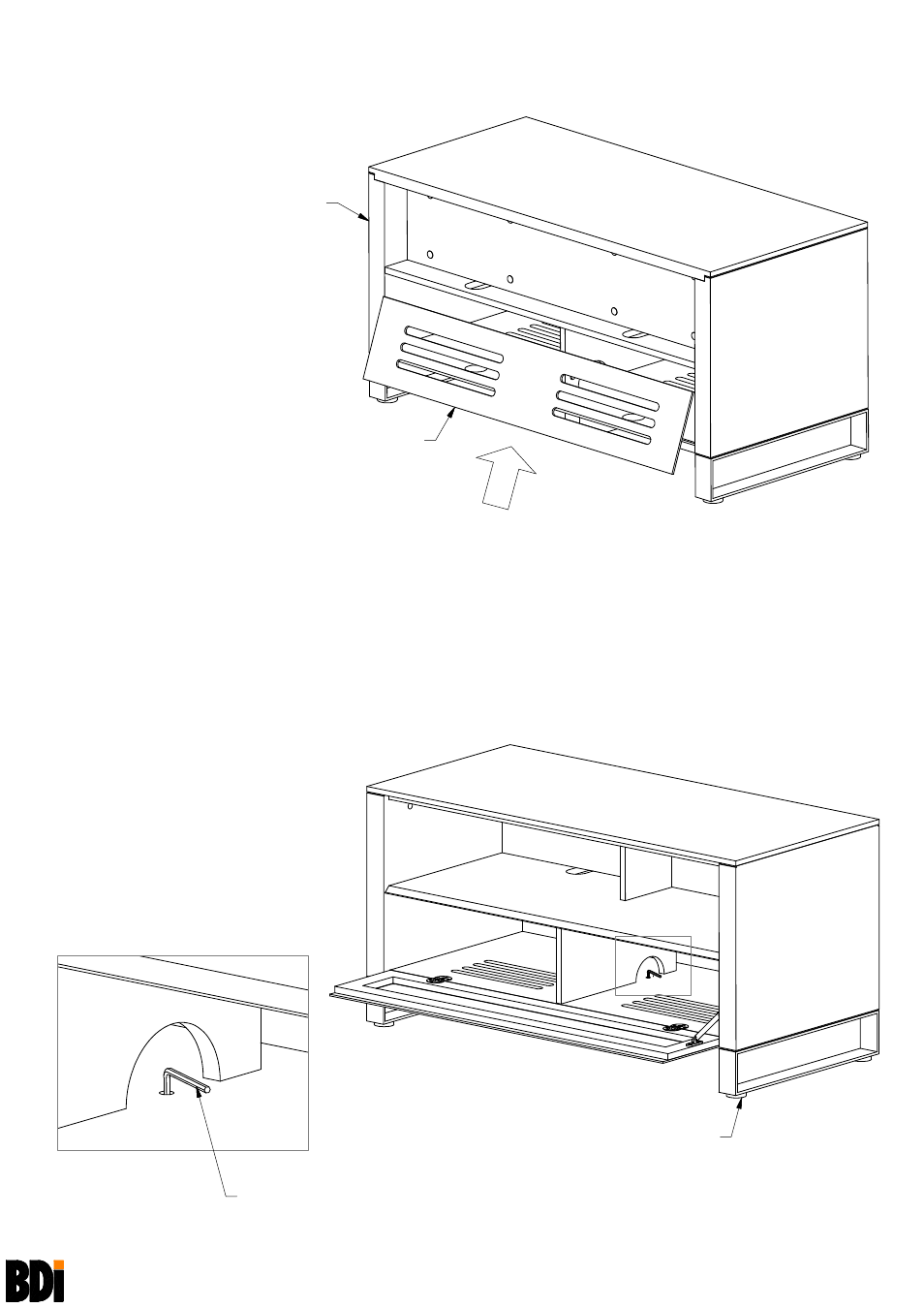

Install Back Panel
Insert top edge of Back Panel (G) into upper
slot, then tilt bottom of panel in and lower panel
into bottom slot.
Step 4
Adjust Levelers
Position Cabinet as desired then turn black puck
levelers by hand to adjust as necessary.
Use
Hex Wrench (A) inside bottom of Cabinet to
adjust center leveler as necessary.
G
D
Use
Hex Wrench (A) inside bottom of Cabinet
to adjust Leveler as necessary.
Turn black puck leveler by hand
to adjust as necessary.
