9252000994 Rev P BE1-50/51B-214/-215/-223/-225 Controls and Indicators 2-1
SECTION 2 • CONTROLS AND INDICATORS
Introduction
Figure 2-1 illustrates the front panel controls and indicators of the BE1-50/51B-214/-215/-223/-225. Figure
2-2 illustrates the location of switch SW3. Both illustrations have lettered call-outs that correspond to the
control and indicator descriptions provided in Table 2-1.

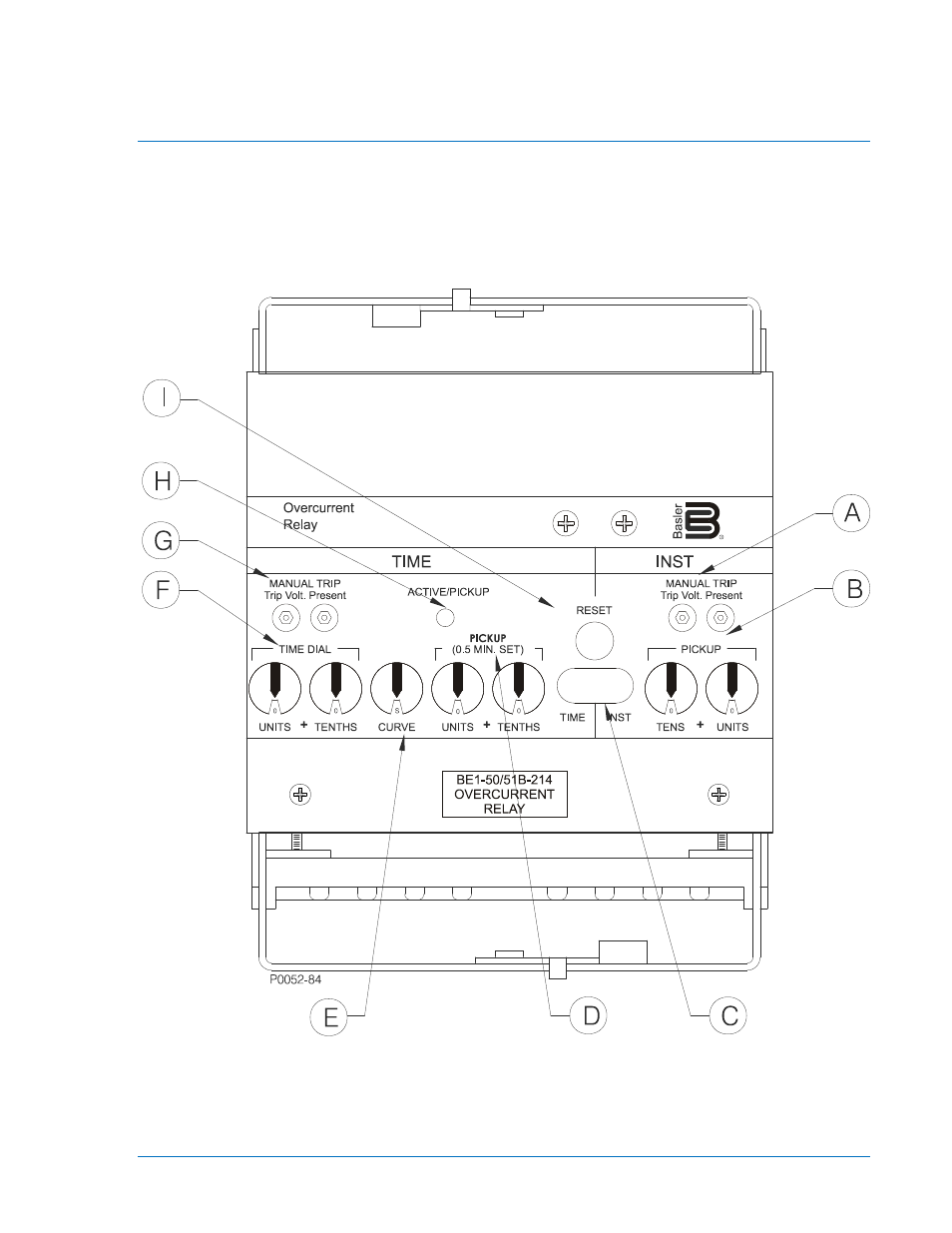

Figure 2-1. Front Panel Controls and Indicators
