Dimplex DF3033ST - Manual (Page 17)

17
Maintenance
③
Set log set in front of
fireplace.
④
Disconnect the log set LED
wire harness from unit.
⑤
Gently pull the flicker rod to
the right as far as possible into
the rubber bushing on the flicker
motor shaft (Figure 9).
snaps into place under the mirror
(Figure 10).
!
NOTE: Ensure the log set is
installed tightly under the back
ledge to prevent light leakage.
⑩
Replace glass assembly.
Upper Light Bulb Requirements
Quantity of two (2) clear
chandelier or candelabra bulbs
with an E-12 (small) socket base,
15 Watt rating.
Do not exceed 15 Watts per
bulb.

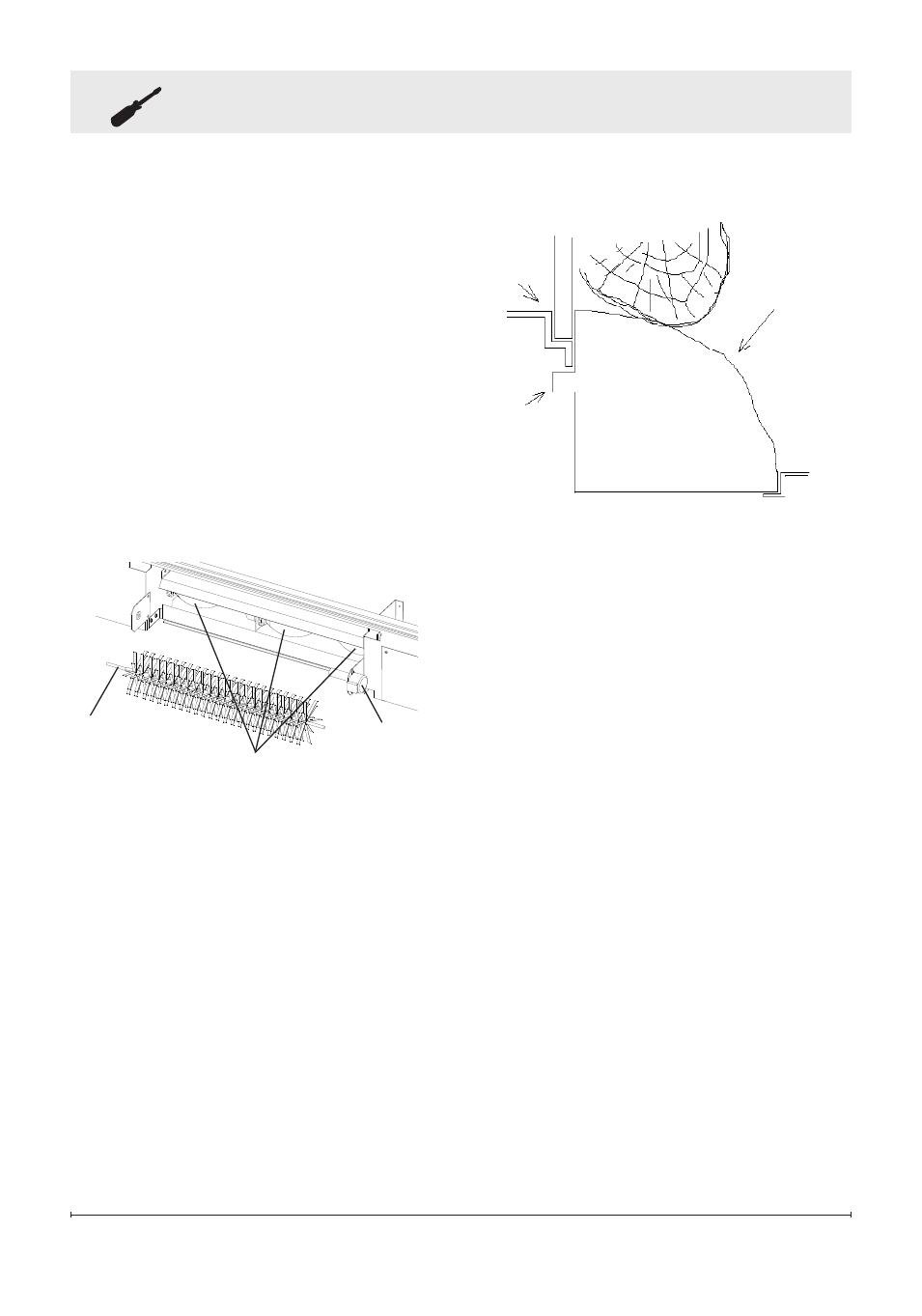

Figure 9
Exploded view to show detail
Flicker Rod
Flicker
Motor Bulbs (3)
⑥
unscrew bulbs counter
clockwise.
⑦
Insert new bulbs.
⑧
Reconnect the log set LED
wire harness.
⑨
Install the log set by placing
the front, bottom edge of the
ember bed in the track behind
the front panel. once in place,
push down on the back edge of
the ember bed until the rear tab
Back
Ledge Log
Ember Bed
Rear
Tab
Side Section
Figure 10
Front
Edge
