30 Installation (for qualified installers only)
© Travis Industries 4060517 100-01158

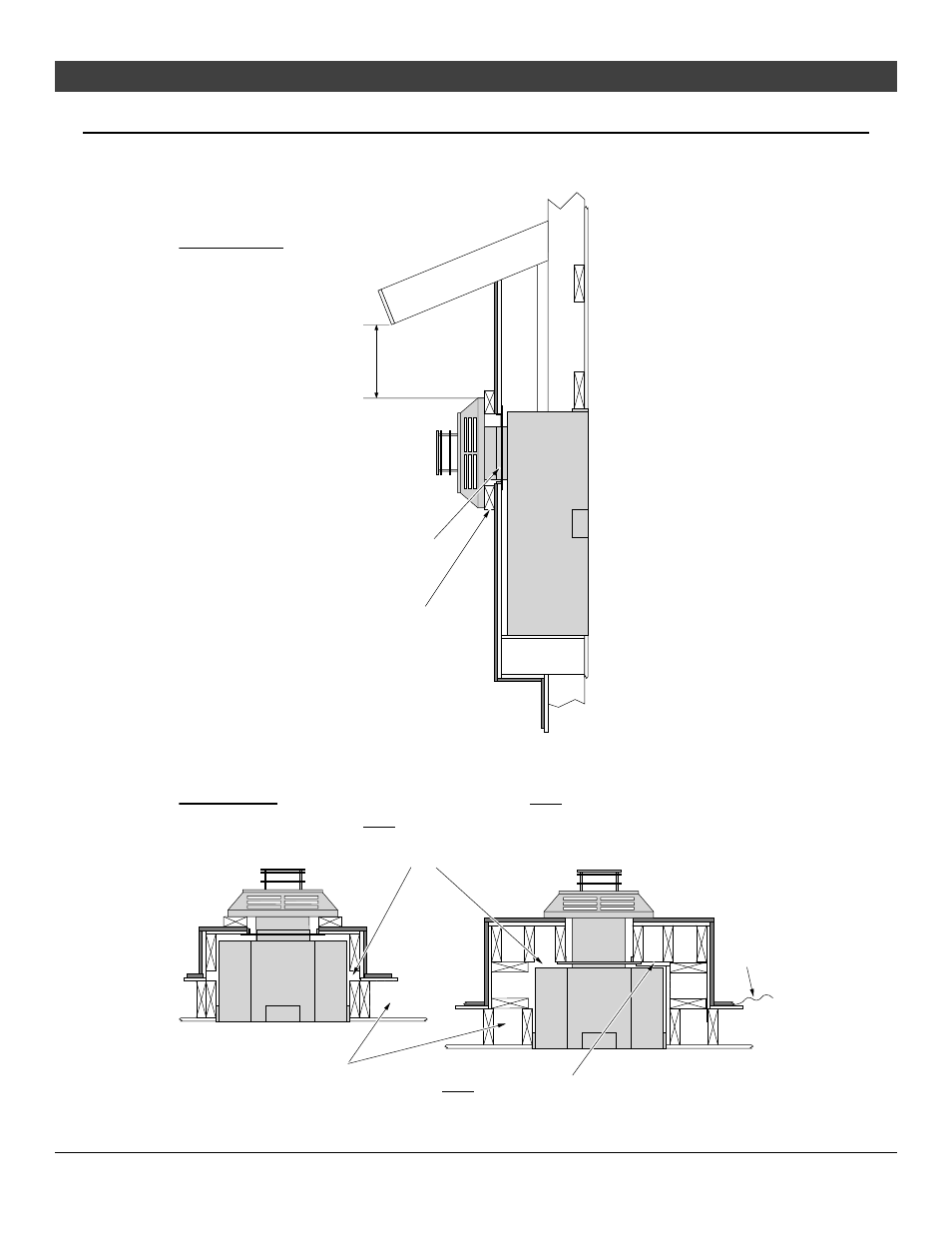

Installation Example - Build-Out (Dog-House)
•
The framing, facing, and other building materials depicted below is for example only. Refer to
local building codes for framing, facing, and insulating requirements in your area.
Top View
Side View
See “Vent Termination”
for full requirements.
Firestop
NOTE: When venting directly to to the
rear, without any horizontal sections,
you may require a “stand-off” to mount
the cap (this fills the space between
the siding and the cap). Make sure to
weatherproof any exterior structures.
NOTE: If required to use drywall inside
the firebox enclosure, make sure to alter
the framing accordingly.
NOTE:
1/2” Clearance to sides
and back of fireplace.
Vapor
Barrier
NOTE:
In colder climates the fireplace may
require an insulated enclosure.
Insulation
