1. Home Theater Playback – Playing Back Using Multi-channel System –
When connecting with an HDMI cable, press and set it to “HDMI On”.
DBP-4010UDCI automatically detects audio/video signal supported by the connected HDMI
device and outputs the signal. To change the setting, see “HDMI Setup” on the GUI menu
(vpage 23, 24).
NOTE
When·you·press· ·and·set·it·to·“HDMI·On”,·no·video·signals·are·output·from·the·component·
video·outputs.
To·disable·video·or·audio·output·from·the·HDMI·terminal,·set·“Video·Out”·of·“Pure·Direct·Setup”,·
which·outputs·high·quality·analog·audio·to·“Off”.·To·enable·the·HDMI·signal·output,·set·the·Pure·
Direct·mode·to·one·of·the·following·setting:
Pure·Direct·mode·“Off”·or·“User·Preset·1”·or·“User·Preset·2”·(b)
(“Playing·Back·High-Quality·Audio·(Pure·Direct·Function)·”·vpage·38)
Do·this·after·setting·“Pure·Direct·Setup”·–·“User·Preset·1”·or·“User·Preset·2”·– “Video·Out”·on·GUI·
menu·to·“On”·(vpage·28).
•
•
•
•
•
b

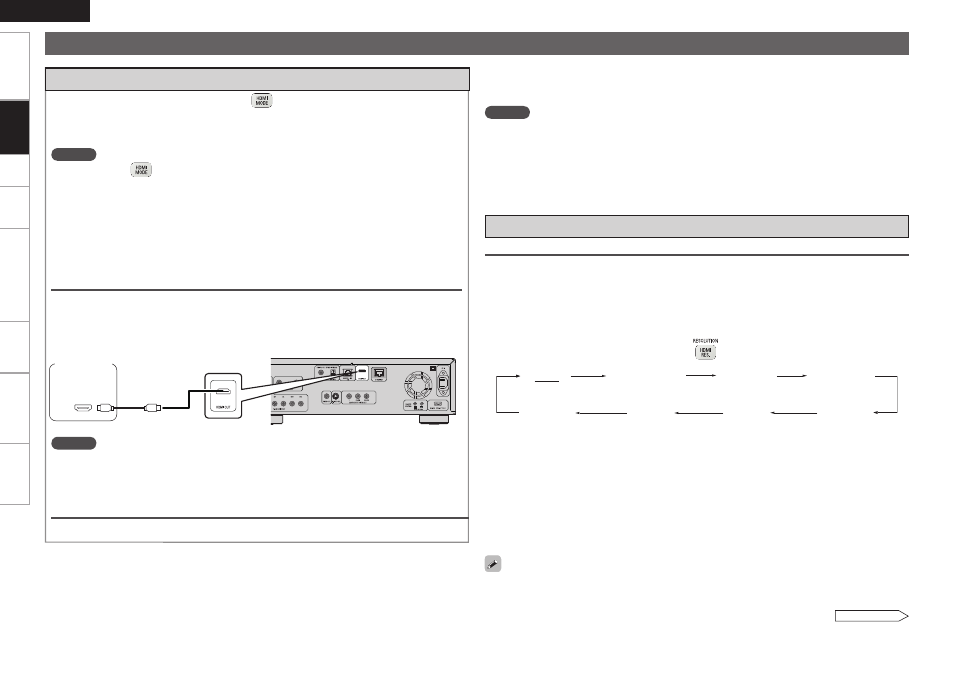

Using an HDMI Cable to Connect to an AV Amp or Television
Connections
During “HDMI On”
Audio/video·signals·are·output·from·the·HDMI·terminal.
When· the· HDMI· video· resolution· is· set· to· “Auto”· as· described· in· “About· HDMI· Video· Resolution·
Setting”·(vpage·13),·the·DBP-4010UDCI·outputs·the·highest·resolution·video·signal·that·is·supported·
by·the·connected·equipment.
*/
)%.*
AV Amp or
TV
During “HDMI Off”
Audio/video·is·not·output·from·the·HDMI·terminal.
Connection to a device with a DVI-D terminal
If·you·use·a·HDMI/DVI-D·conversion·cable·(sold·separately),·HDMI·video·signals·are·converted·to·DVI-
D·signals,·enabling·connection·to·a·device·with·a·DVI-D·terminal.·
n
NOTE
In·this·case,·the·audio·signal·is·not·output.·Make·the·appropriate·audio·connections·for·your·devices.·
(vpage·14·~·20).
The·video·signal·will·be·in·RGB·format.·
You· cannot· output· to· a· DVI-D· device· that· does· not· support· HDCP· (high-bandwidth· digital· content·
copyright·protection·system).·
Video·may·not·be·output·depending·on·the·combination·of·devices.· •
•
•
•
NOTE
When·audio/video·signals·are·output·from·the·HDMI·terminal,·no·video·signals·are·output·from·the·
component·terminals.
When·a·signal·comprising·24·frames·per·second,·such·as·1080P24,·is·output·from·the·HDMI·terminal,·
no·video·signals·are·output·from·the·video·or·S-Video·outputs. •
•
Setting HDMI video output
Make HDMI Output Signal and HDMI Control Function Settings
“HDMI·Setup”·(vpage·23,·24)
Make the Video Output Signal Setting for the Connected Television
“Video·Setup”·(vpage·24)
About HDMI Video Resolution Setting
Change· the· HDMI· video· resolution· by· pressing· .· Switch· the· output· mode· as· follows.· Default·
settings·are·underlined.
Auto 480/576i
1080P24 1080P 1080i
480/576P
720P
Source Direct
If·the·HDMI·resolution·is·not·set·to·“Auto”,·set·it·to·correspond·with·the·resolution·of·your·television.··
Images·will·not·be·projected·normally·if·the·television·resolution·and·DBP-4010UDCI’s·output·resolution·
do·not·match.·
Audio·and·video·will·be·temporarily·interrupted·if·the·power·of·the·connected·device·currently·playing·
back·is·turned·off,·or·input·is·switched.
When·you·change·the·HDMI·video·resolution·of·the·DBP-4010UDCI,·it·takes·from·a·few·seconds·up·to·
about·10·seconds·for·validation·between·the·DBP-4010UDCI·and·the·connected·device.·Audio/video·is·
not·output·during·this·period.
When· outputting· deep· colour· or· 1080p,· etc.,· we· recommend· you· use· High· Speed· HDMI· cable· for·
enhanced·high-quality·playback.·
n
n
n
•
•
•
•
•
Required Settings for HDMI Connection
(480/576·interlaced) (480/576·progressive)
(720·progressive) (1080·interlaced) (1080·progressive) (1080·progressive,·24-frame)
(Source·direct) (Auto)
When· outputting· a· video· signal· comprising· 24· frames· per· second· from· the· HDMI· terminal,· select·
“1080P24”·or·“Source·Direct”·after·setting·the·GUI·menu·“HDMI·Setup”·–·“I/P·Direct”·(vpage·23)·to·
“On”.
See overleaf
