UM025901-1112 Build and Run the Z51F6412 Demo Project
Z51F6412 Development Kit
User Manual
30
9. Click OK to exit the Settings dialog.
10. From the Options for Target ‘Demo’ dialog, select the Load Application at Startup
checkbox, as shown in Figure 27, the so that the IDE will download the code upon
connection. There is no need to select or enter an initialization file.
11. Click OK to exit the Options for Target ‘Demo’ dialog.
12. From the Project menu, select Rebuild All to rebuild all target files.

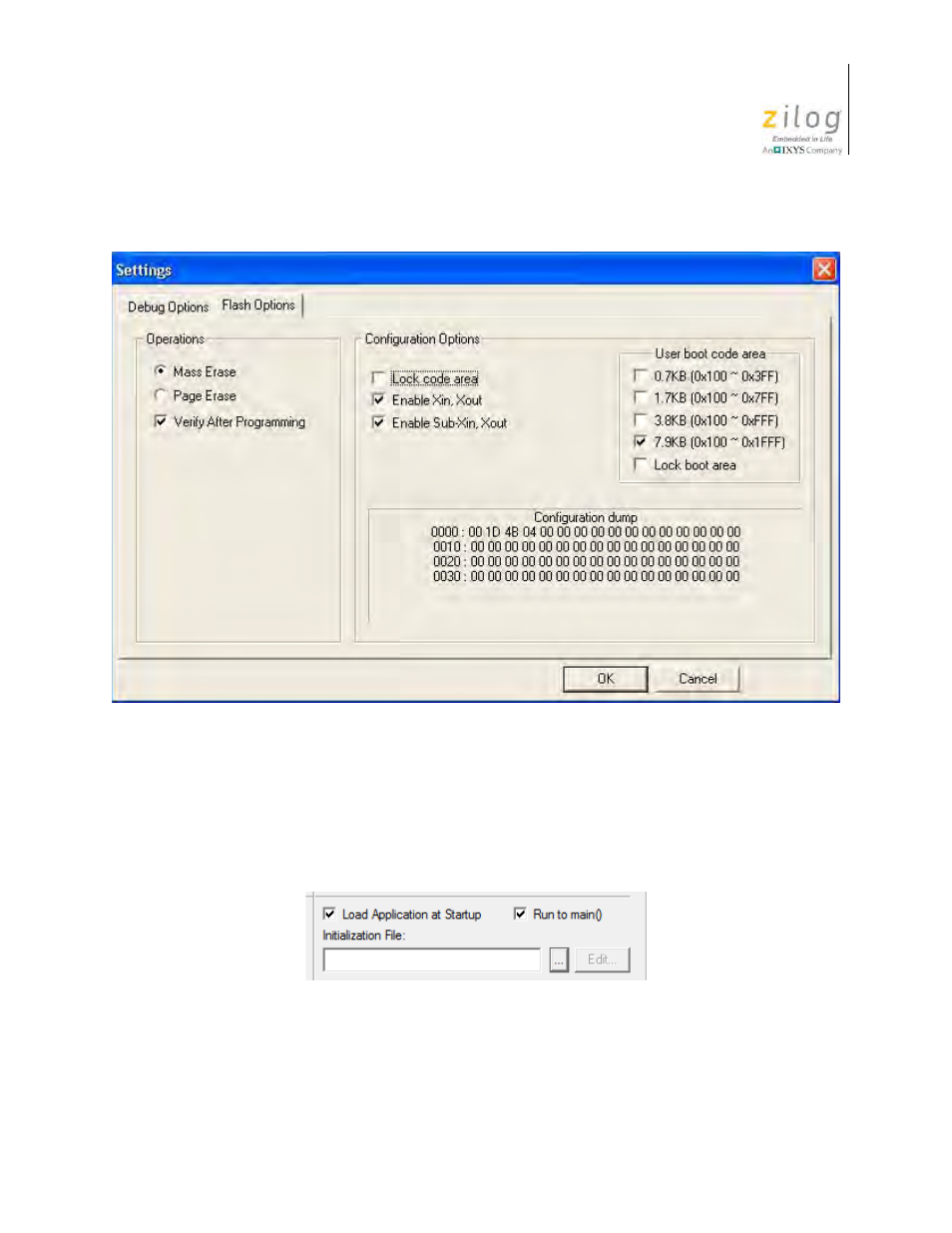

Figure 26. Configuring the Flash Options
Figure 27. Load Application at Startup Settings
