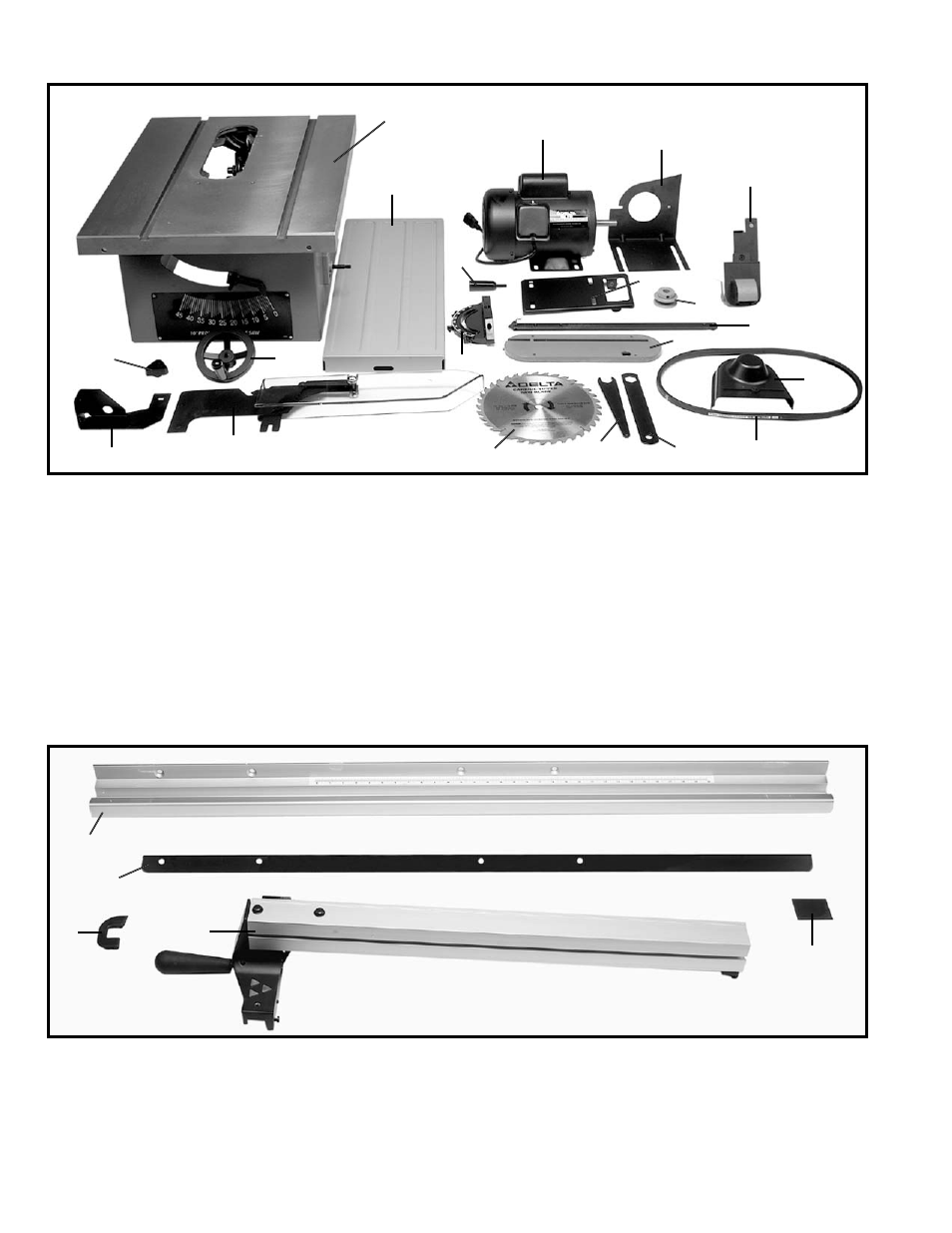

10" PROFESSIONAL TABLE SAW PARTS
Fig. 2
1. Table Saw
2. Extension Wing (2)
3. Motor
4. Pulley Guard Plate
5. Switch Assembly
6. Lock Knob (2)
7. Handwheel (2)
8. Miter Gage Handle
9. Motor Plate
10. Motor Pulley
11. Miter Gage Body
12. Miter Gage Guide Bar
13. Table Insert
14. Splitter Bracket
15. Blade Guard and Splitter Assembly
16. Saw Blade
17. 7/8" Open End Wrench
18. 7/8" and 1/2" Close End Wrench
19. Drive Belt
20. Belt Guard
FENCE PARTS
Fig. 3
1. Guide Rail
2. Rear Rail
3. Guide Rail End Cap (2)
4. Fence
5. Fence End Cap
