VEC-1290K Instruction Manual AM
Switches/Jacks/Misc.:
0 Qty Part Description
Radio Transmitter
Kit
Designation
1 DPDT push-action switch SW1
1 RCA phono jack, PC-mounted J1
1 2.1 mm DC coaxial power jack J2
5 2-pin PC board mount headers JMP1,2,3,4,5
2 2-pin jumpers, shorting
1 16-pin IC socket
1 8-pin IC socket
1 4" nylon cable tie
1 PC board
1 6' length of insulated 20-AWG solid wire ANTI

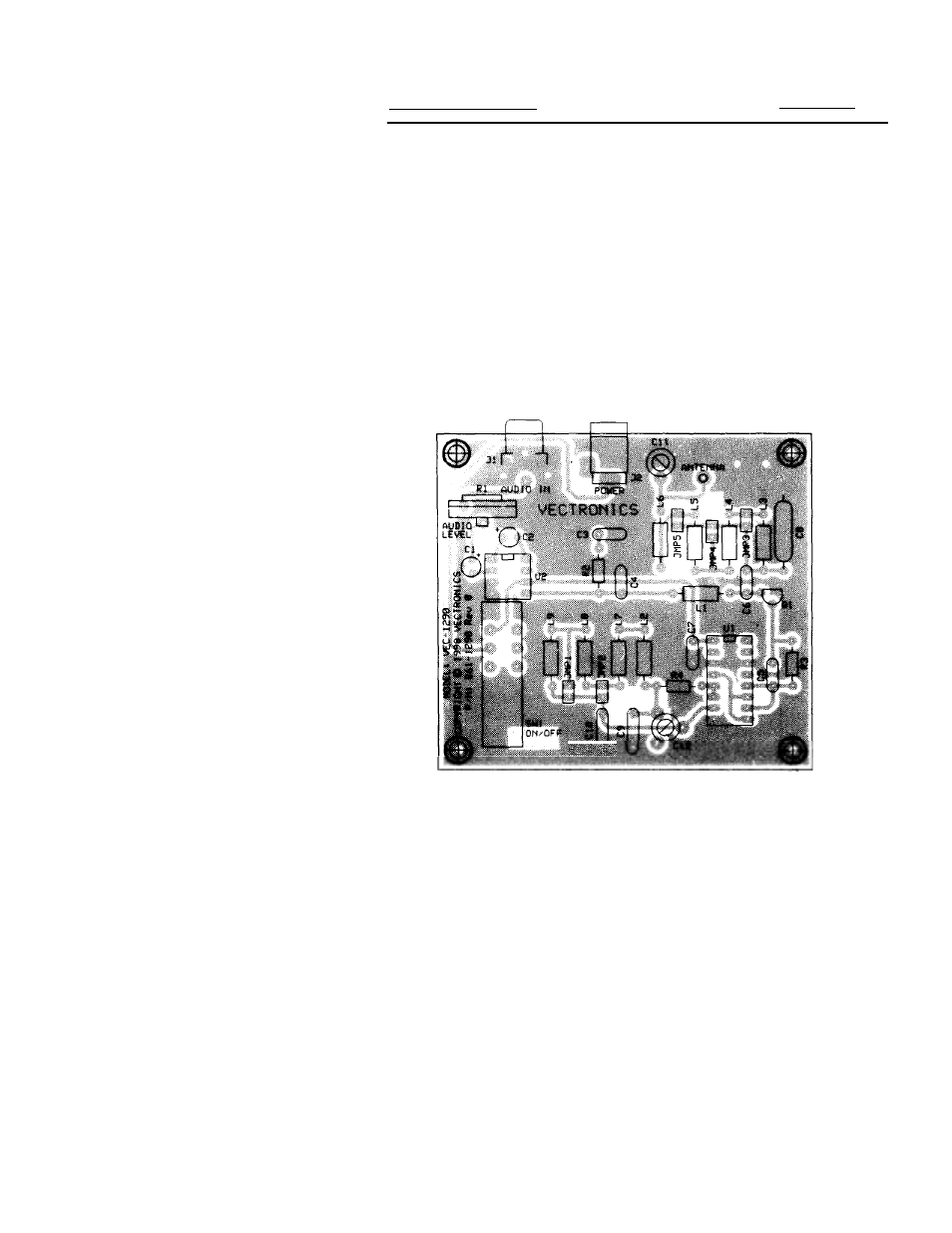

PARTS PLACEMENT DIAGRAM
