Signamax Managed Hardened PoE Industrial DIN-rail Mount Switch - Manual (Page 75)

14 RMON
70

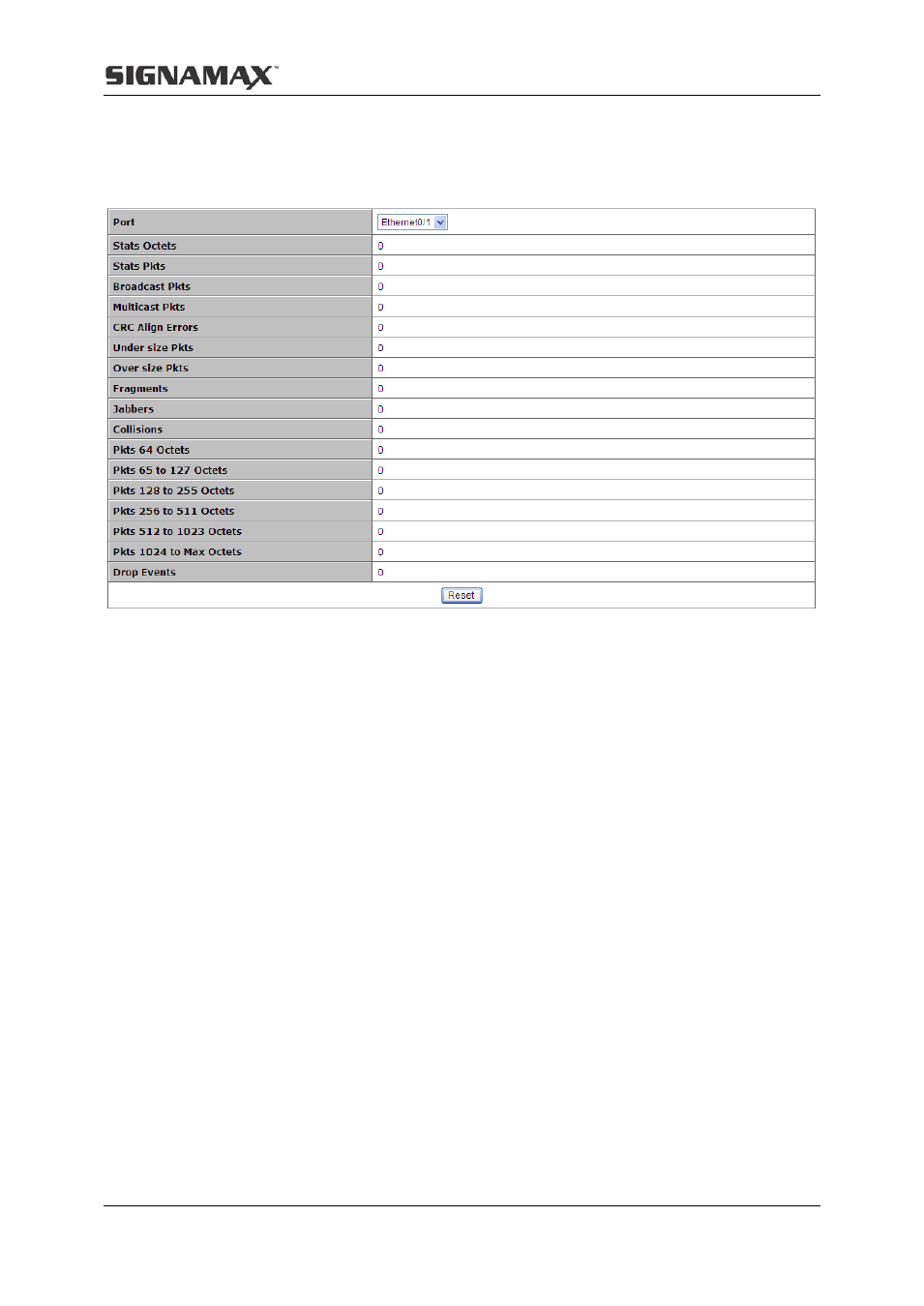

Drop Events: The total number of events when packets are dropped by the probe due to
lack of resources.
All of the statistics for each Ethernet port can be reset.
14.2 History
14.2.1 History control
This page sets a history control entry on each port. And then the port will be sampled with the
specified interval and the specified sample number about its transmitting situation.
Port: The Ethernet port for collecting statistics.
Owner: The entity that configured this entry and is therefore using the resources assigned to
it.
Sampling interval(s): The data sample time interval of each group. The interval range is
from 1 and 3600(1 hour).
Sampling number: The number of discrete sampling intervals over which data shall be
saved in the part of the media-specific table associated with this history control entry.
The lower part of the interface will list the RMON history entries, which can be deleted.
