9 LLDP
45
LLDPDUs encapsulated with the same encapsulation format. So is for the
SNAP-encapsulated LLDPDU.
LLDPDU encapsulation format is Ethernet II by default. If the neighbor devices encapsulates
LLDPDU with SNAP format, the user can change the LLDPDU encapsulation format to SNAP
to maintain the normal communication with neighbor devices.
LLDP can operate in one of the following modes:
Disabled mode A port in this mode does not send or receive LLDPDUs.
Tx and Rx mode A port in this mode sends and receives LLDPDUs.
Tx Only mode A port in this mode only sends LLDPDUs.
Rx Only mode A port in this mode only receives LLDPDUs.
When the LLDP operating mode of a port takes change, its LLDP protocol state machine will
re-initialize. To prevent LLDP from being initialized too frequently during times of frequent
operating mode change, you can configure a re-initialization delay. With this delay configured,
a port must wait for the specified interval before it can initialize LLDP after the LLDP operating
mode changes.
Transmitting LLDPDUs
An LLDP-enabled port operating in “Tx and Rx” mode or “Tx Only” mode sends LLDPDUs to
its directly connected devices both periodically and when the local configuration changes. To
prevent the network from being overwhelmed by LLDPDUs during times of frequent local
device information change, an interval is introduced between two successive LLDPDUs.
This interval is shortened to 1 second in either of the following two cases:
 A new neighbor is discovered, in other words, a new LLDPDU is received carrying device
information new to the local device.
 The LLDP operating mode of the port changes from “Disabled” /”Rx Only” to “Tx and Rx”
or “Tx Only”.
This is the fast sending mechanism of LLDP. This feature sends a specific number of
LLDPDUs at the 1-second interval to help LLDP neighbors discover the local device as soon
as possible. Then, the normal LLDPDU transmit interval resumes.
Receiving LLDPDUs
An LLDP-enabled port operating in “Tx and Rx” mode or “Rx Only” mode checks the validity
of TLVs carried in every received LLDPDU. If valid, the information is saved and an aging
timer is set for it based on the time to live (TTL) value in the Time To Live TLV carried in the
LLDPDU. If the TTL value is zero, the information is aged out immediately.

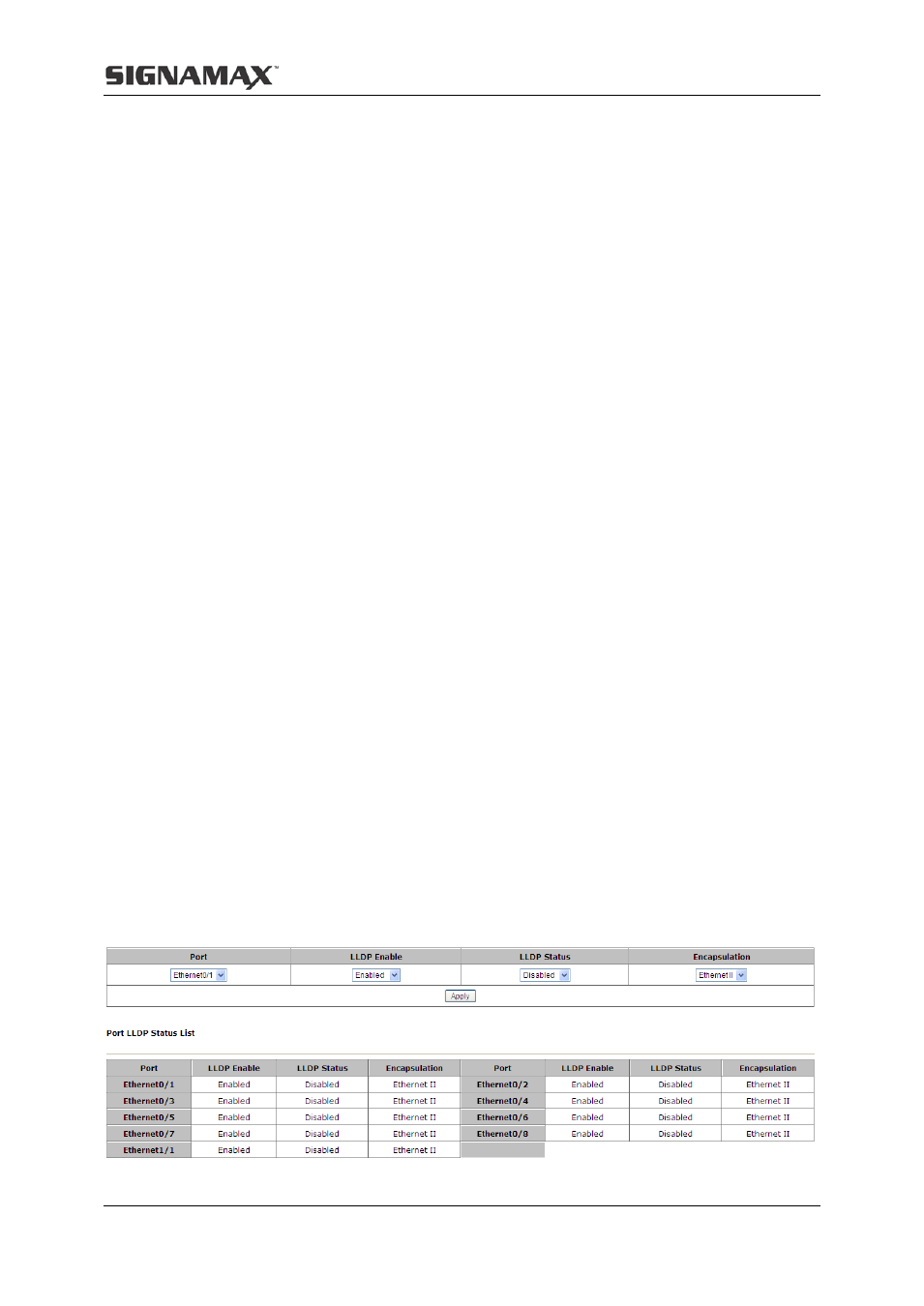

The lower part of this page lists the LLDP status for all ports.
