Quick start guide – Signamax 10/100BaseT/TX Ethernet Extender Media Converter User Manual
Page 2
Industrial Ethernet Extender
2
Quick Start Guide
This quick start guide describes how to install and use the Ethernet
Extender. The Ethernet Extender introduced here provides one channel for
Ethernet over existing voice grade copper wire.

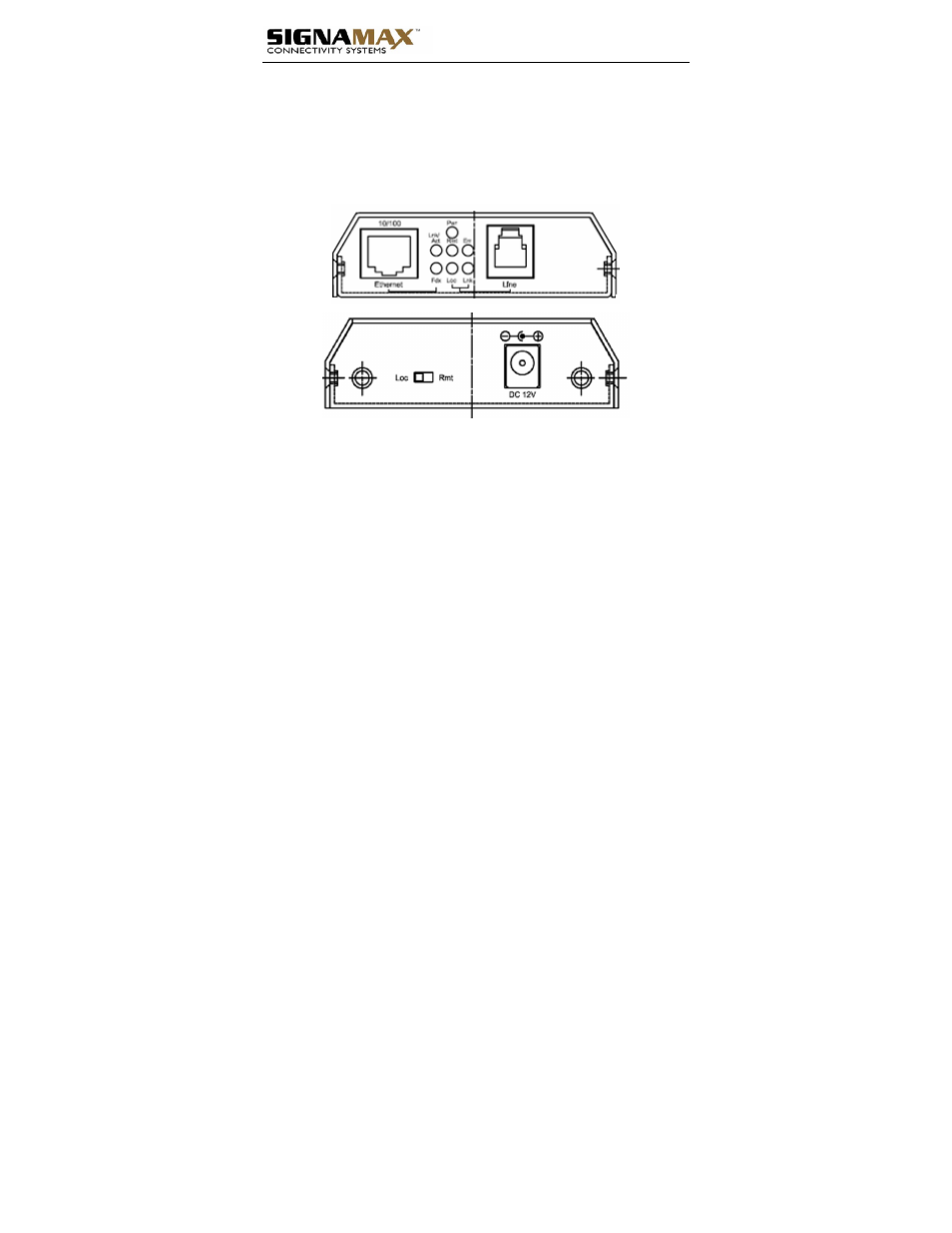

Product Overview
Product Features
One 10/100BaseT/TX Ethernet port with RJ-45 connector
Auto negotiation of speed and duplex mode on TX port
Auto MDIX on TX port
Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX
standards
One Ethernet Extender port with RJ-11 connector
Ethernet
Extender
port
auto
senses
the
speed
of
1/3/5/10/15/20/25/30/40/50Mbps
One DIP switch for configuring Ethernet Extender local or remote mode
Status LEDs
External AC to DC power adapter
Used as a stand-alone device or with a chassis
Hot-swappable when used with a chassis
