7-1
P/N: 4809658
©2006 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
23MAR06 v1.0 UnivSBMCarb(4809658v1.0)
7.1 AIR INLET DUCTING INSTALLATION

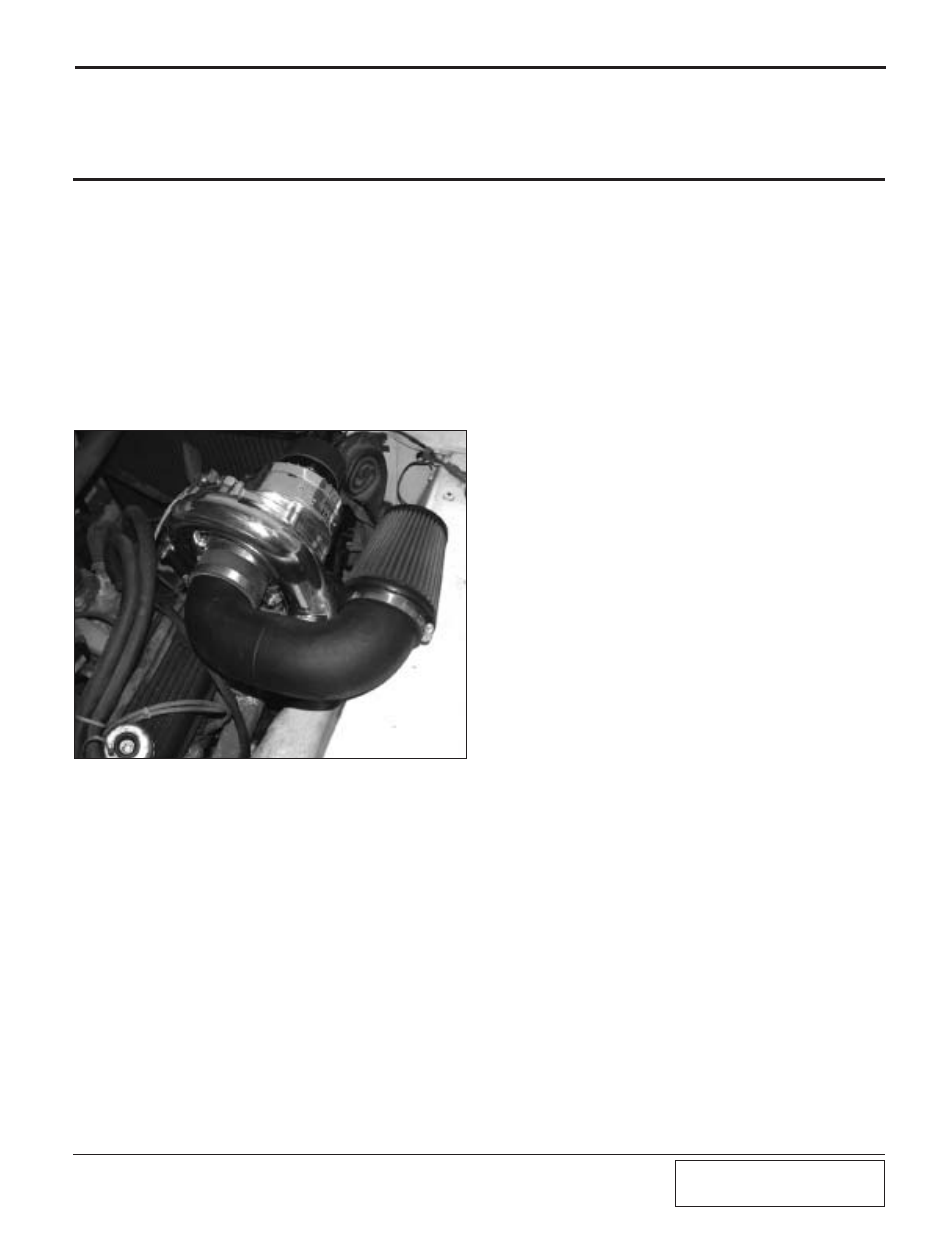

Fig. 7.1-a
A. Locate the Air Inlet Assembly P/N:
4PCX112-010.
B. Install the 3.5" x 2" long sleeve onto the
supercharger inlet and secure using the #56
hose clamp provided.
C. Install the 180° molded inlet duct in the
sleeve previously installed and secure using
the remaining #56 hose clamp.
D. Secure the supplied filter to the open end of
the 180° inlet duct. (See Fig. 7.1-a.)
Section 7
AIR INLET DUCTING INSTALLATION
