Paxton Superchargers Universal Small Block Mopar/318 Carbureted System - Manual (Page 22)

6-2
P/N: 4809658
©2006 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
23MAR06 v1.0 UnivSBMCarb(4809658v1.0)
M12-1.75"
x 20mm
w/WASHERS
M12-1.75" x
20mm
w/DUSTSHIELD
SUPERCHARGER
BELT
ALTERNATOR
WATER
PUMP
PULLEY
POWER
STEERING
PULLEY
CRANK
PULLEY
TENSIONER

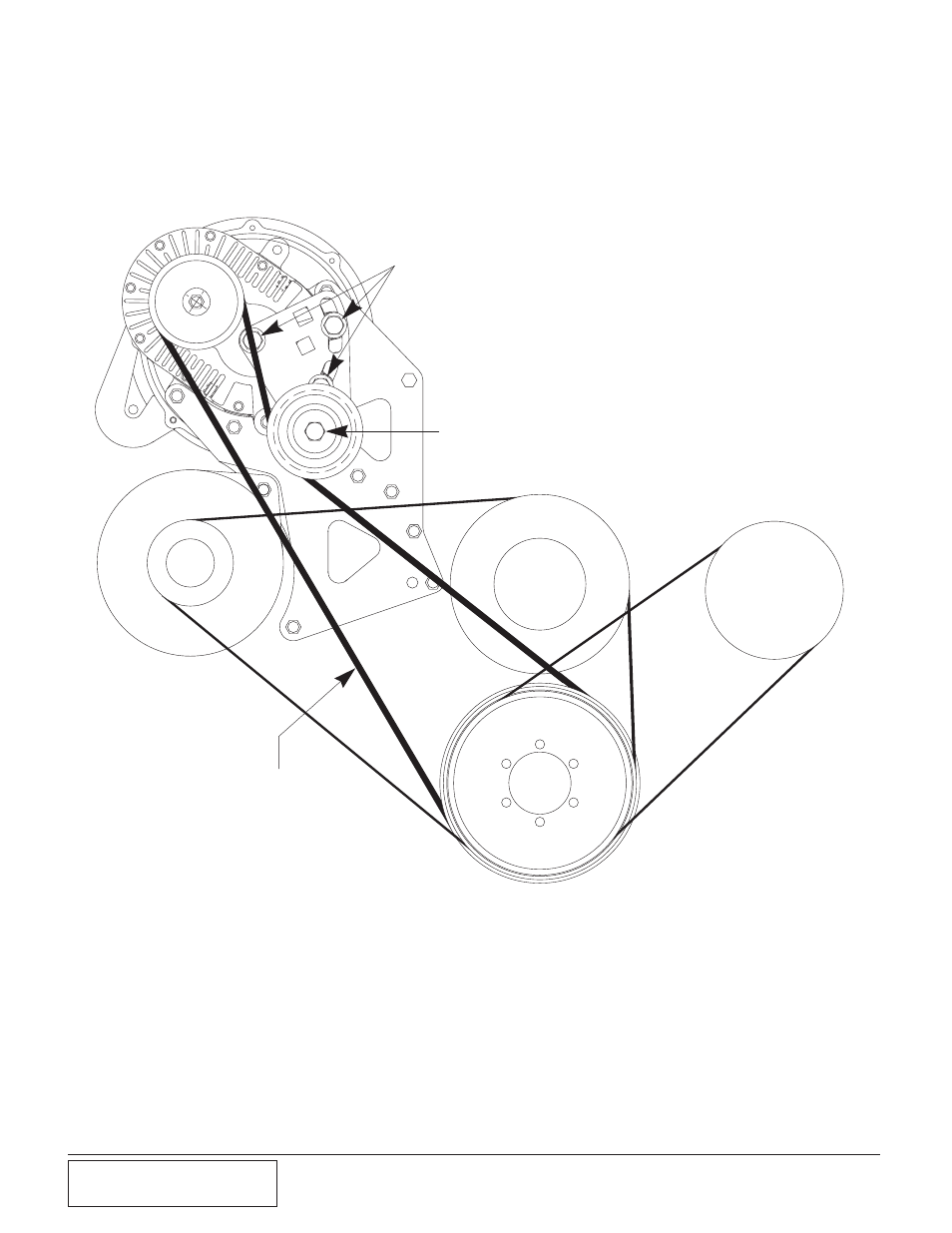

Fig. 6.2-a / Belt Routing With A/C
A1. Loosely install the three supplied 12mm
bolts through the tensioner plate and into the
supercharger cover. Install the idler and
spacer onto the front side of the plate in one
of the holes provided. (See Fig. 6.2-a.)
A. Install the power steering, alternator and
supercharger drive belts and tension each.
(Do not over-tension the supercharger drive
belt. Press down firmly on the idler while
tightening the three tensioner plate bolts).
(See Fig. 6.2-a.)
B. Tighten the previously installed supercharg-
er pulley retainer assembly to 30-35 ft/.lbs.
6.2 BELT TENSIONER INSTALLATION
6.3 BELT INSTALLATION
