Section 2
PREPARATION/REMOVAL
2.1 PREPARATION/REMOVAL
A. Disconnect the negative lead of all batteries.
*** NOTE ***
Refer to Fig. 2.1-a for the following steps.
B. Loosen all nuts and bolts that are used to
tension the alternator and power steering
pump V-belts.
C. Remove all of the belts from the accessories.
D. Remove the stock crank pulley.
E. Remove the alternator stay (adjustment bar)
and retain hardware to be reused in a later
step.
*** NOTE ***
If you have not changed spark plugs in the last
15,000 miles do so prior to the installation of this kit.
F. Remove the remaining hardware securing
the alternator bracket to the cylinder head.
Discard it and the bracket, as they will not
be reused.
*** NOTE ***
If you are installing a universal supercharger kit,
some of the following instructions may not apply or
may require custom fabrication.

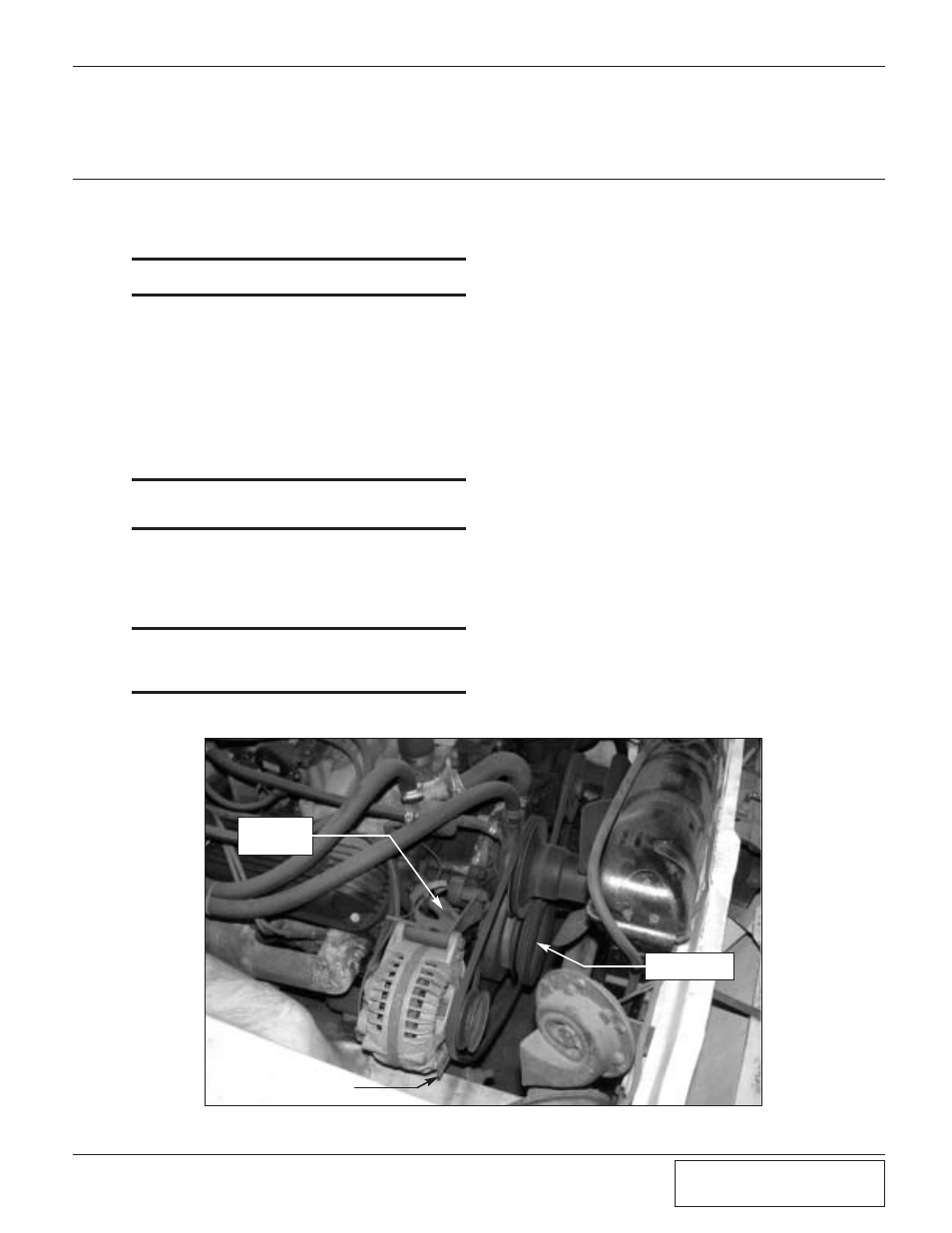

Fig. 2.1-a
FACTORY
ALTERNATOR
BRACKET
FACTORY
CRANK PULLEY
ALTERNATOR STAY
