Section 5
MOUNTING BRACKET/SUPERCHARGER INSTALLATION
5-1
P/N: 4809658
©2006 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
23MAR06 v1.0 UnivSBMCarb(4809658v1.0)
5.1 MOUNTING BRACKET/SUPER-
CHARGER INSTALLATION

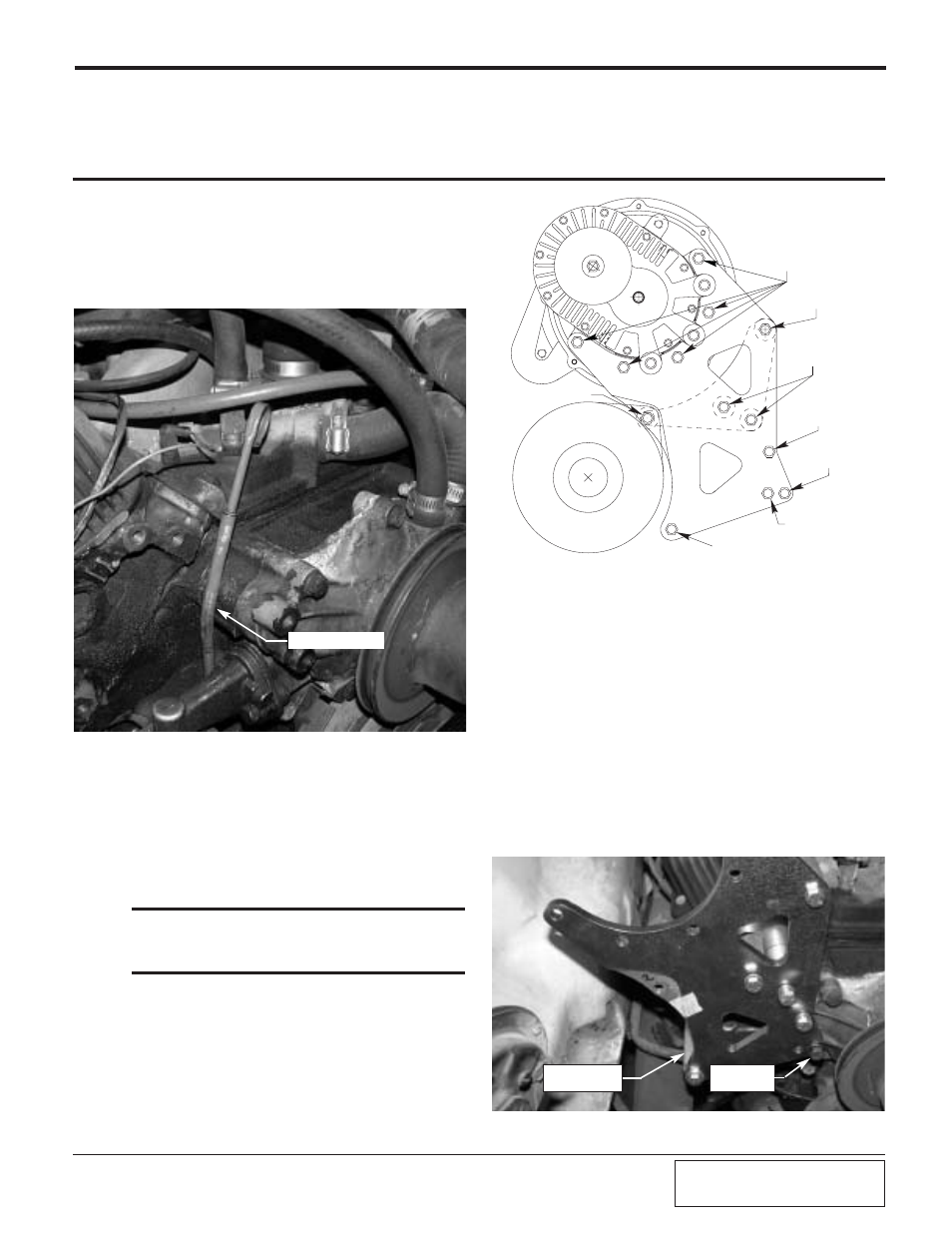

A. It will be necessary to slightly bend the fac-
tory oil dipstick for supercharger clearance.
(See Fig. 5-1-a.)
B. Clean the front of the passenger’s side cylin-
der head so that the mounting spacers will
sit flat when installed.
C. Clean the front of the water pump where the
alternator bracket was previously attached
so the supercharger bracket will mount flat
against the mounting surface.
*** NOTE ***
Refer to Fig. 5.1-b for assistance in the next few
steps. DO NOT tighten hardware until all fasteners
and spacers are installed.
Fig. 5.1-a
1"OD x 4.276" SPACER
3/8" x 5.25" BOLT
3/8-16 x 1" & NYLOCK
NUT ATTACHES J-ARM
FOR ALT.
STOCK HARDWARE
3/8-16 x 1"
3/8-16 x 4.5"
3/8-16 x 3.25"
& NYLOCK NUT
3/8-16 x 1"
STOCK HARDWARE
Fig. 5.1-b
Fig. 5.1-c
D. Locate the 4PCX110-040 mounting bracket
assembly
E. Install the bolt and washer that previously
secured the alternator and alternator bracket
through the supercharger bracket and into
the water pump. (See Figs. 5.1-b, 5.1-c.)
F. Install the 1"OD x 4.276" long spacer and
secure to the engine block using the 3/8-16 x
5.25 bolt and washer provided. (See Figs.
5.1-b, 5.1-e.)
G. Attach the factory alternator stay using a
3/8-16 x 1" bolt and nyloc nut. (See Figs.
5.1-b, 5.1-d.)
BEND SLIGHTLY
FACTORY
HARDWARE
1"OD x 4.276"
LONG SPACER
