Paxton Superchargers Mustang Air/Air Cooler - Manual (Page 9)

P/N: 4809638
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
10NOV03 v2.0 99-01 MusGT(4809638 v2.0)
2-1

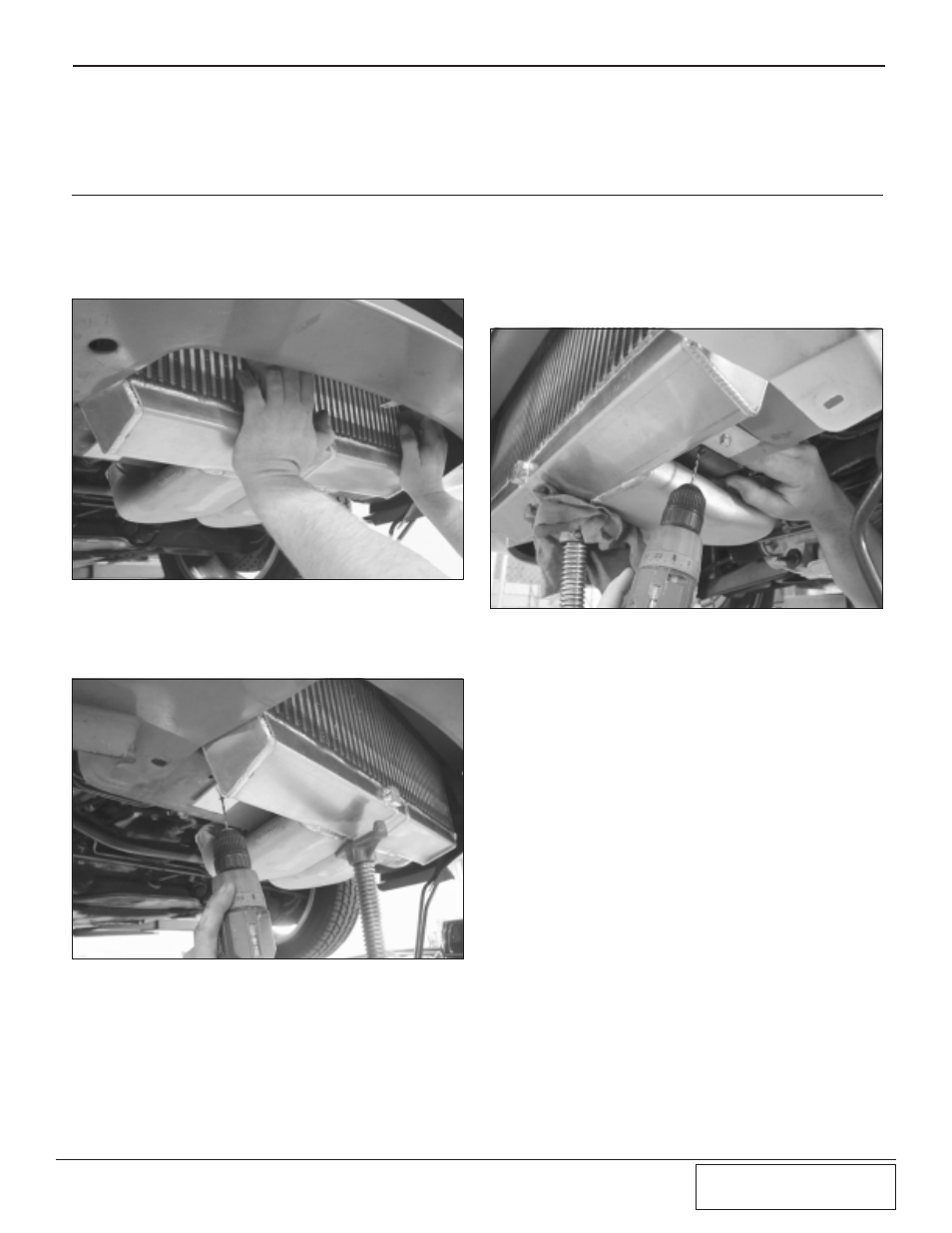

Fig. 2-a
Fig. 2-c
Fig. 2-b
Section 2
INTERCOOLER INSTALLATION
2.1 INTERCOOLER INSTALLATION
A. Install the intercooler and support with jack-
stands or wood blocks. (See Fig. 2-a.) C. Drill one more 1/8" hole and re-attach the
rear radiator overflow reservoir support in
its new location with a 1/4" sheetmetal
screw. (See Fig. 2-c.)
B. Drill two 1/8” holes as shown in Fig. 2-b.
Install two 1/4" sheetmetal screws.
D. Re-attach the powersteering cooler line to
the intercooler.
E. Re-attach the front bumper to the frame re-
using the stock plastic clips.
