Fig. 2-g
Fig. 2-h
Fig. 2-i

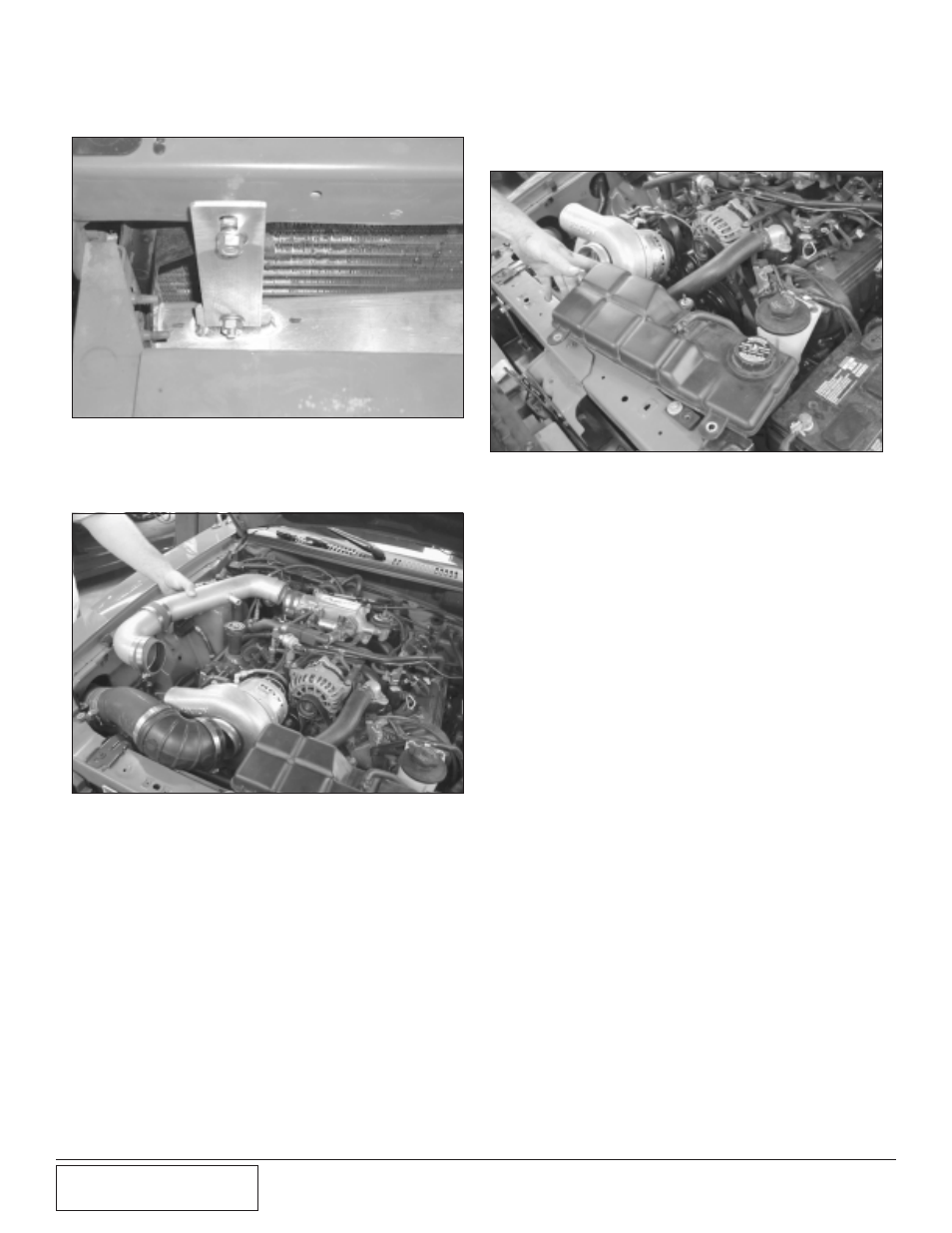

F. Attach the supplied intercooler mounting
bracket with the bolts supplied in the kit.
(See Fig. 2-g.)
G. Remove the discharge tube, bypass valve
and air intake tube. (See Fig. 2-h.)
H. Disconnect the oil lines. Disconnect the oil
return at the pan and the oil feed at the
supercharger.
I. Remove the accessory drive belt by relaxing
the tensioner.
J. Disconnect the supercharger. You will need
to loosen the two bolts on the coolant reser-
voir and move the reservoir to the side to
gain access to the supercharger. (See
Fig. 2-i.)
