3-1

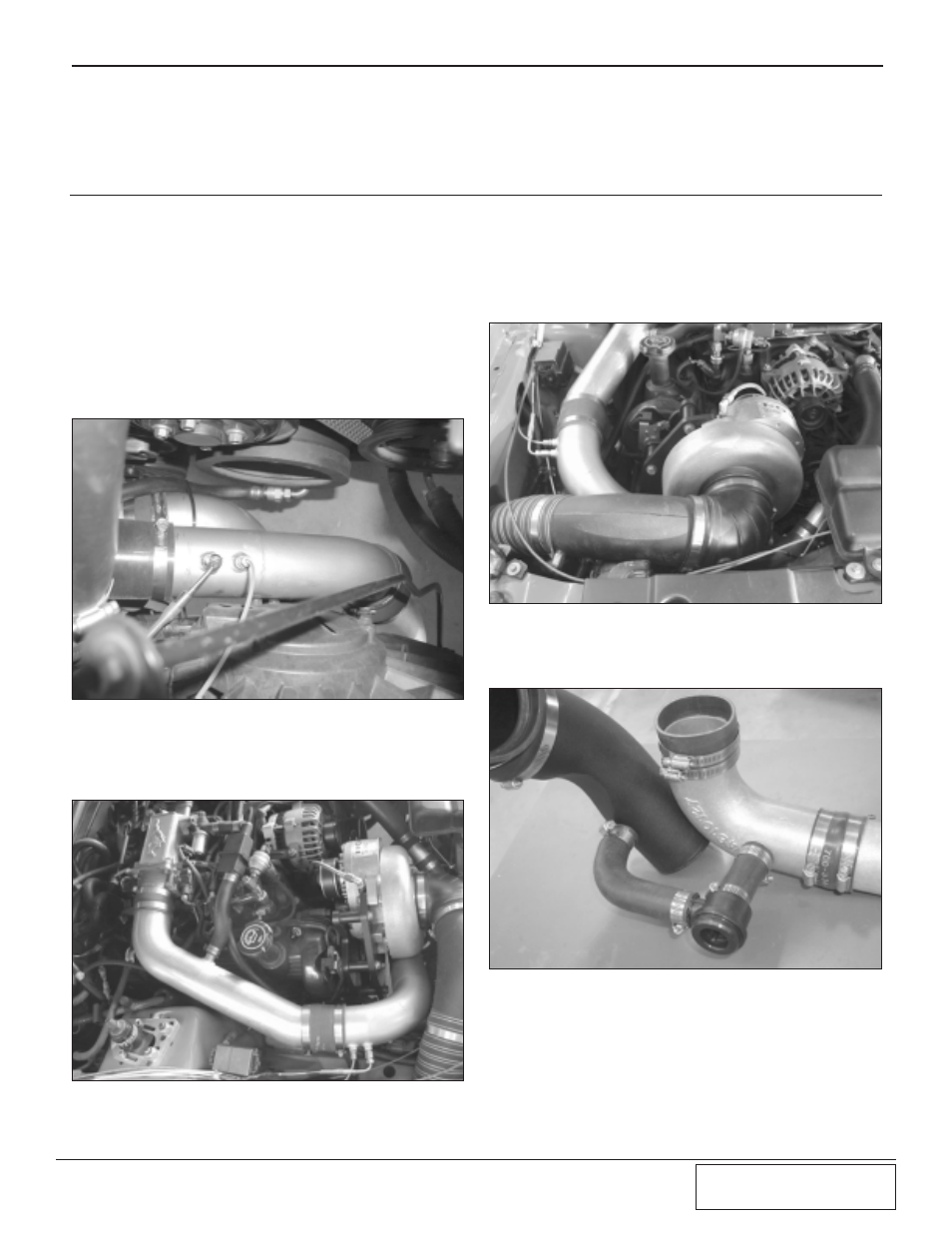

Fig. 3-a
Fig. 3-b
Fig. 3-d
Fig. 3-c
Section 3
FINAL ASSEMBLY
3.1
FINAL ASSEMBLY
A.
Re-clock the supercharger scroll. Refer to
the supercharger assembly drawing in the
back of the installation manual for position-
ing.
B.
Re-attach the oil lines.
C.
Connect the discharge tube between the
intercooler and the supercharger. (See.Fig.
3-a.)
D.
Attach the discharge tube assembly between
the intercooler and the throttle body. (See
Fig. 3-b.)
E.
Re-install the air intake tube between the air
filter/mass air meter and the supercharger.
(See Fig. 3-c.)
F.
Re-install the bypass valve from air intake
to discharge tube. (See Fig. 3-d.)
