Paxton Superchargers Mustang Air/Air Cooler - Manual (Page 8)

P/N: 4809638
©2003 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
10NOV03 v2.0 99-01 MusGT(4809638 v2.0)
1-2

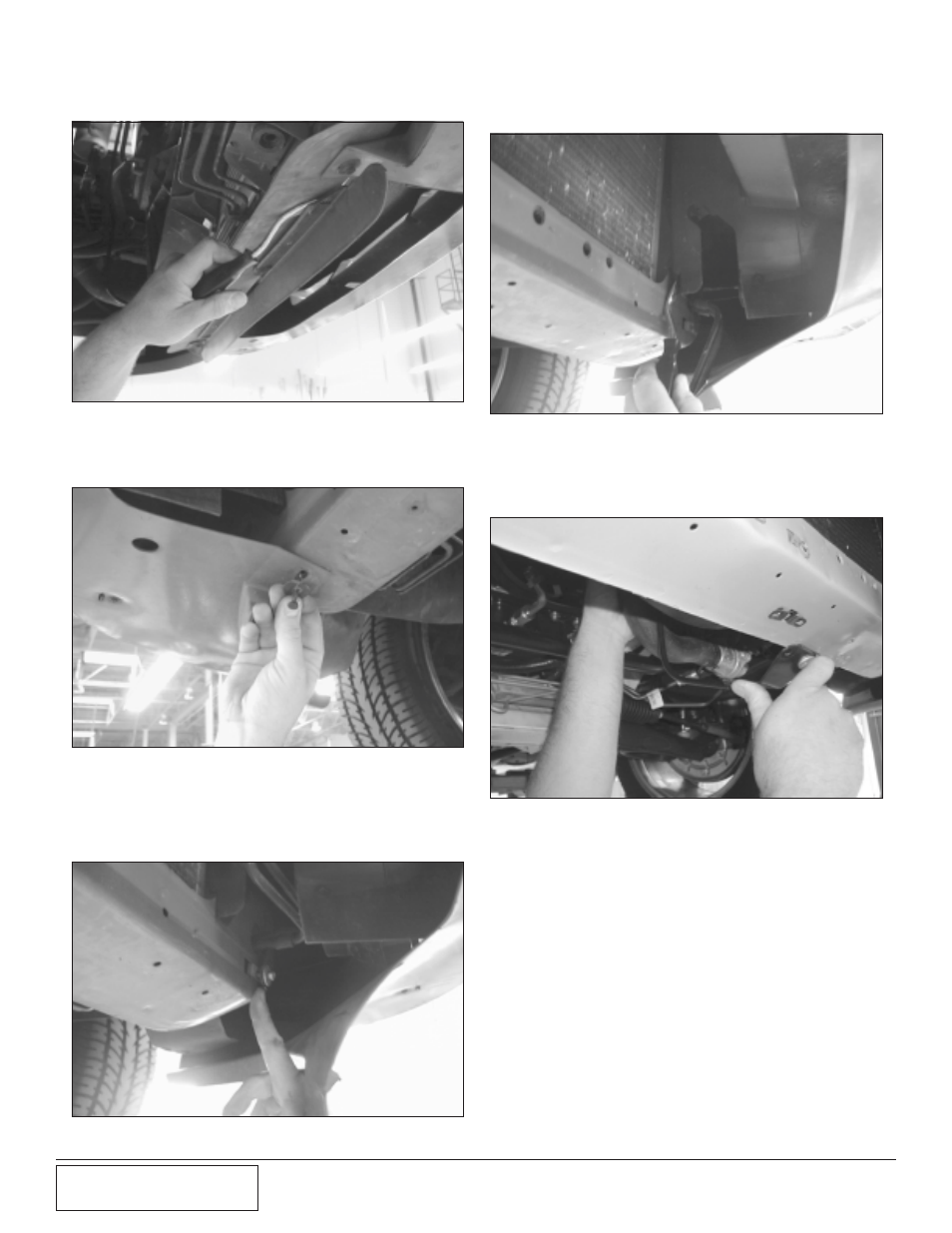

Fig. 1-e
Fig. 1-f
Fig. 1-h
Fig. 1-g
E. Remove the plastic clips (4) that hold the air
deflector in place. (See Fig. 1-e)
F. Remove the plastic clips(2) that attach the
front bumper to the frame. (See Fig. 1-f.)
G. Remove the screw that holds the power
steering cooler bracket in place. Set the line
aside to be installed in a later step of the
installation. (See Fig. 1-g.)
H. Pop loose the clips on the air deflector to the
left and right sides of the radiator. (See
Fig. 1-h.)
Fig. 1-i
I. Disconnect the rear radiator reservoir sup-
port brace from the bottom of the frame.
(See Fig. 1-i.)
