NEXCOM VTC 6100 User Manual
Page 44
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
29
VTC 6100 User Manual
Chapter 2: Jumpers and Connectors

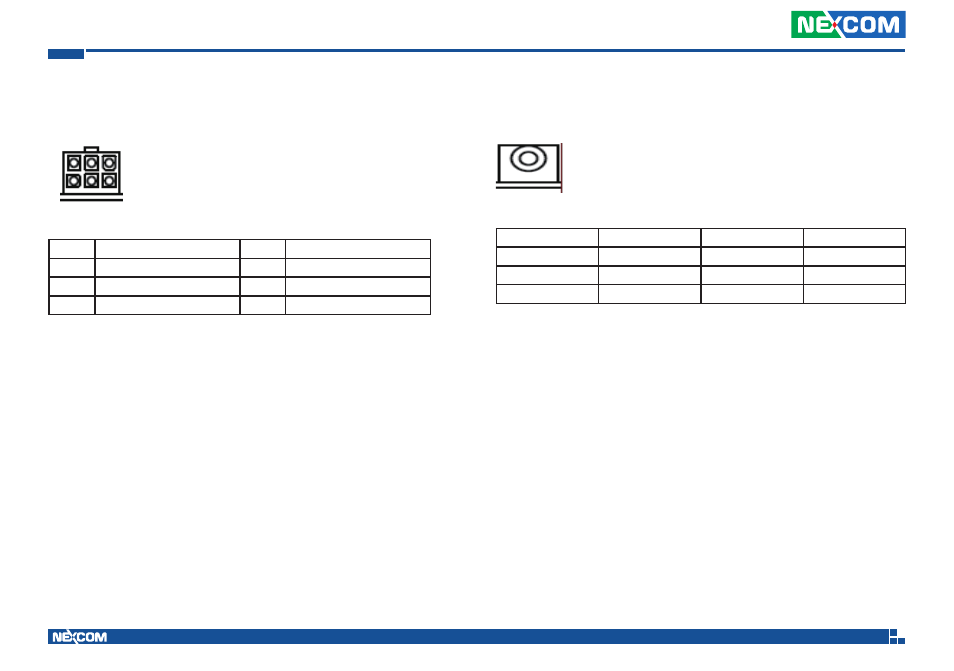

External 12V & 5V Power and SMBUS Connector
Connector location: CN2
6
3
4
1
Connector Pin Definition
Pin
Definition
Pin
Definition
1
5V
2
12V
3
SMBCLK
4
GND
5
GND
6
SMBDATA
Mic-in
Connector location: CN11 and CN15
Connector Pin Definition
Pin
Definition
Pin
Definition
1
NC
2
MIC_JD
3
NC
4
MIC_OUT
5
GND
6
GND
