Chapter 2: Jumpers and Connectors

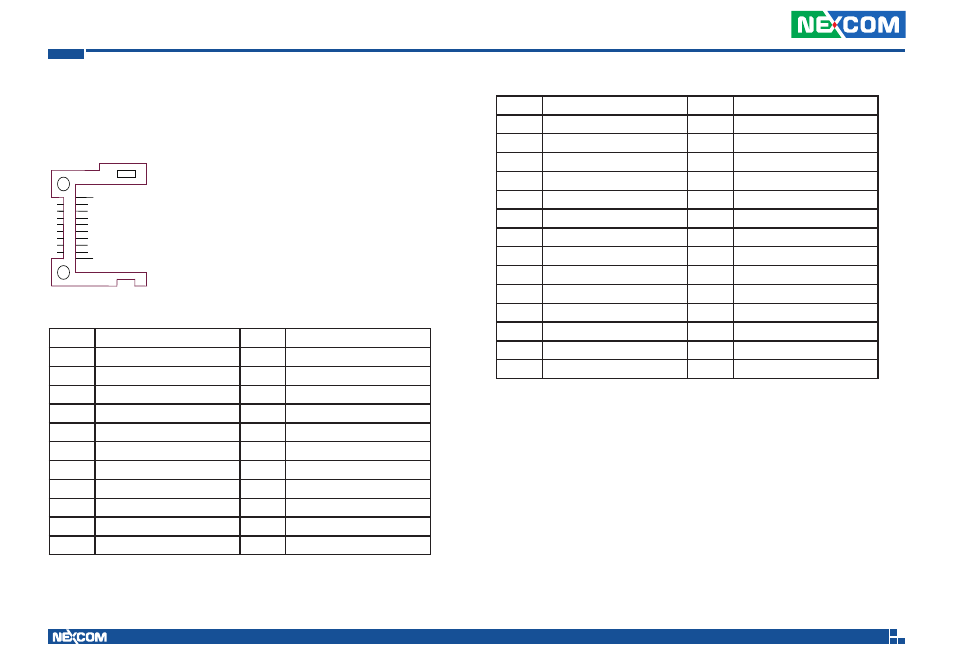

CompactFlash Connector
Connector size: 2 x 25 = 50 pins
Connector location: J12
1
26
50
49
Pin Description Pin Description
1 Gnd 2 Data 3
3 Data 4 4 Data 5
5 Data 6 6 Data 7
7 HDC CS100 8 Gnd
9 Gnd 10 Gnd
11 Gnd 12 Gnd
13 +5V 14 Gnd
15 Gnd 16 Gnd
17 Gnd 18 Disk Address 2
19 Disk Address 1 20 Disk Address 0
21 Data 0 22 Data 1
Connector Pin Definition
Pin Description Pin Description
23 Data 2 24 IOCS16# (NC)
25 CF_CD2# (Pull-down) 26 CF_CD1# (Pull-down)
27 Data 11 28 Data 12
29 Data 13 30 Data 14
31 Data 15 32 HDC CS300
33 CF_VS1# (NC) 34 IOR
35 IOW 36 CF_WE# (+5V)
37 Interrupt 15 38 +5V
39 CF_CSEL# (Master or Slave) 40 CF_VS2# (NC)
41 Reset # 42 IOCHRDY
43 DMA REQ / DACK (NC) 44 DMA ACK# /CF_REG# (+5V)
45 HDD Active Led 46 DMA66 Detect / CF_PDIAG#
47 Data 8 48 Data 9
49 Data 10 50 Gnd
