Chapter 2: Jumpers and Connectors

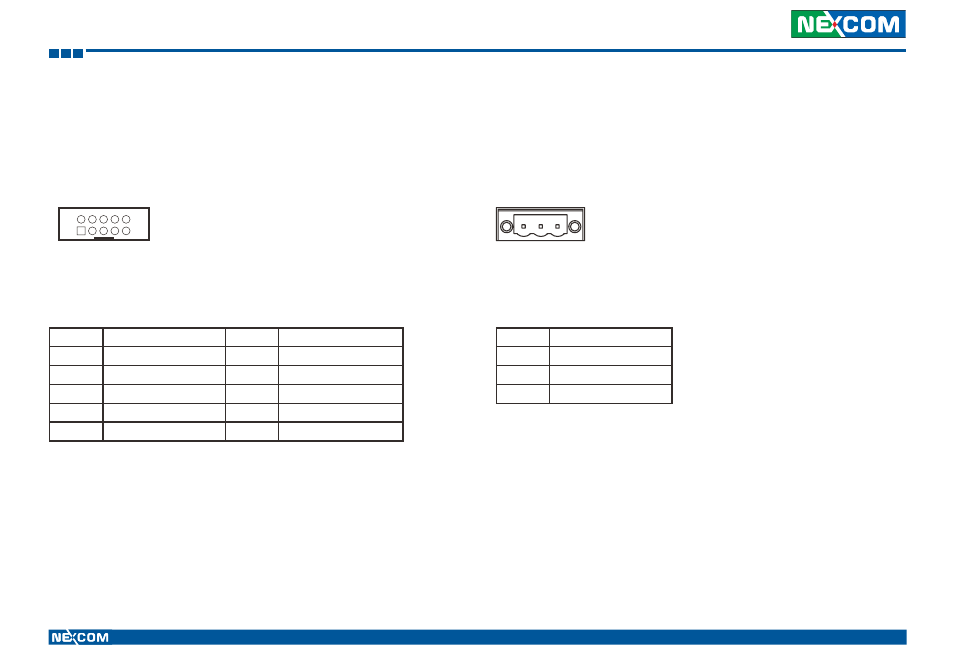

Connector pin definition Connector pin definition
CAN Module Connector
Connector location: CN8 POWER INPUT (CN1)
Connector location: CN1
Pin Definition Pin Definition
1 UR TXD 2 UR RXD
3 CAN DI1 4 CAN DO1
5 GND 6 GND
7 NC 8 NC
9 POWER(+5V) 10 NC
Pin Definition
1 GND
2 VIN(9V~36V)
3 IGNITION
2
1
10
9
1 3
