PEAK 886VL2 User Manual
Chapter 2: Jumpers and Connectors

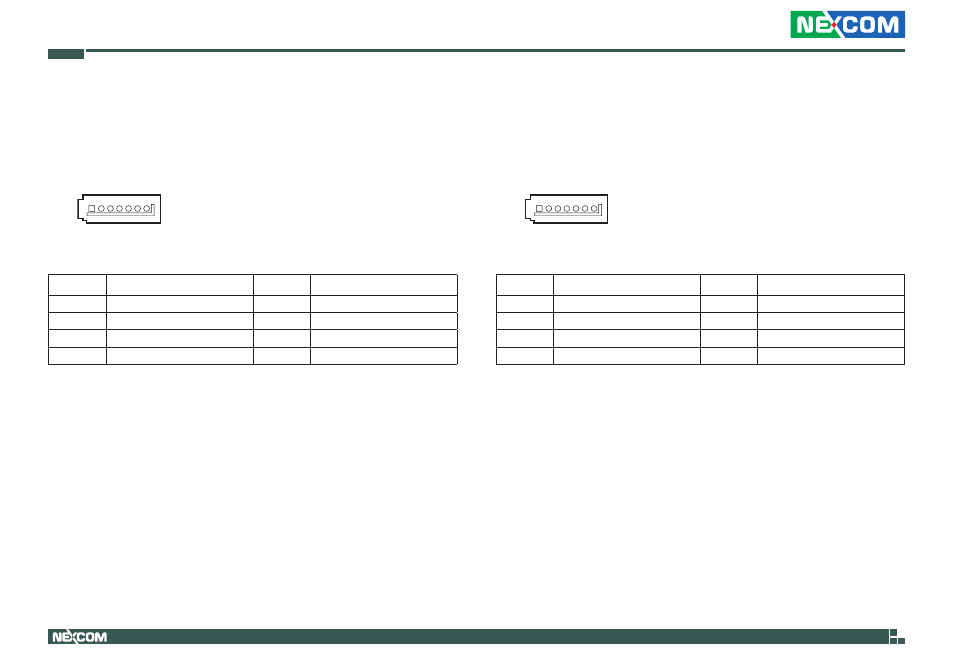

SATA 2 Connectors
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN3 and CN7
Pin
Definition
Pin
Definition
1
GND
2
TXP0
3
TXN0
4
GND
5
RXN0
6
RXP0
7
GND
8
1
7
SATA 3 Connectors
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: CN1 and CN4
Pin
Definition
Pin
Definition
1
GND
2
TXP1
3
TXN1
4
GND
5
RXN1
6
RXP1
7
GND
8
1
7
