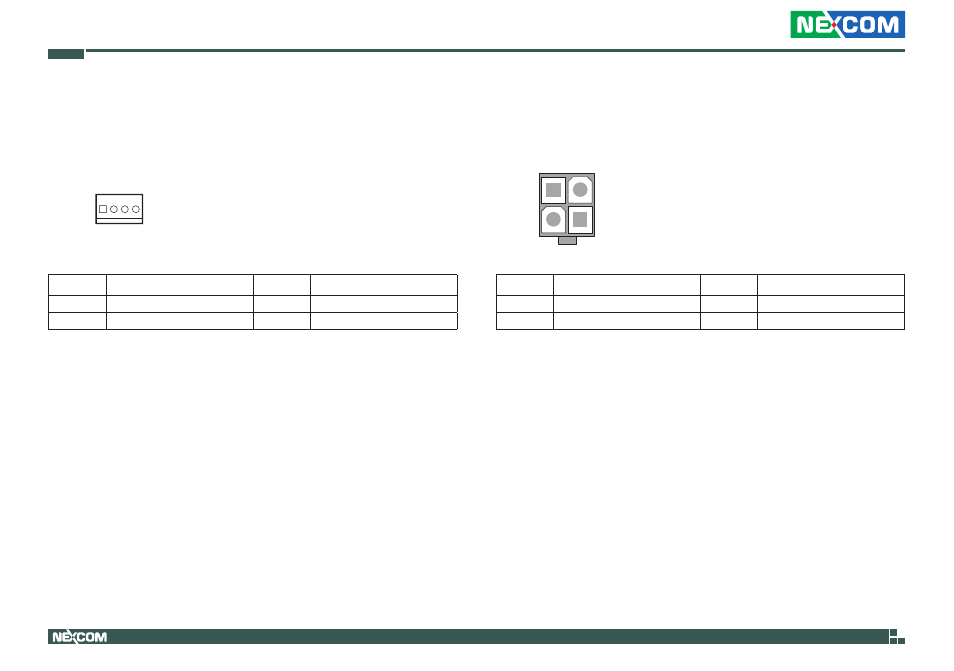

Smart FAN Connectors
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN1 and FAN2
1
4
Pin
Definition
Pin
Definition
1
GND
2
+12V
3
S1_FANIO1
4
S1_FANPWN1
+12V Power Connector
Connector type: 2x2 4-pin header, 4.2mm pitch
Connector location: CON1
1
2
3
4
Pin
Definition
Pin
Definition
1
GND
2
GND
3
+12V
4
+12V
