Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 32 ICEK 268-T2 Starter Kit User Manual

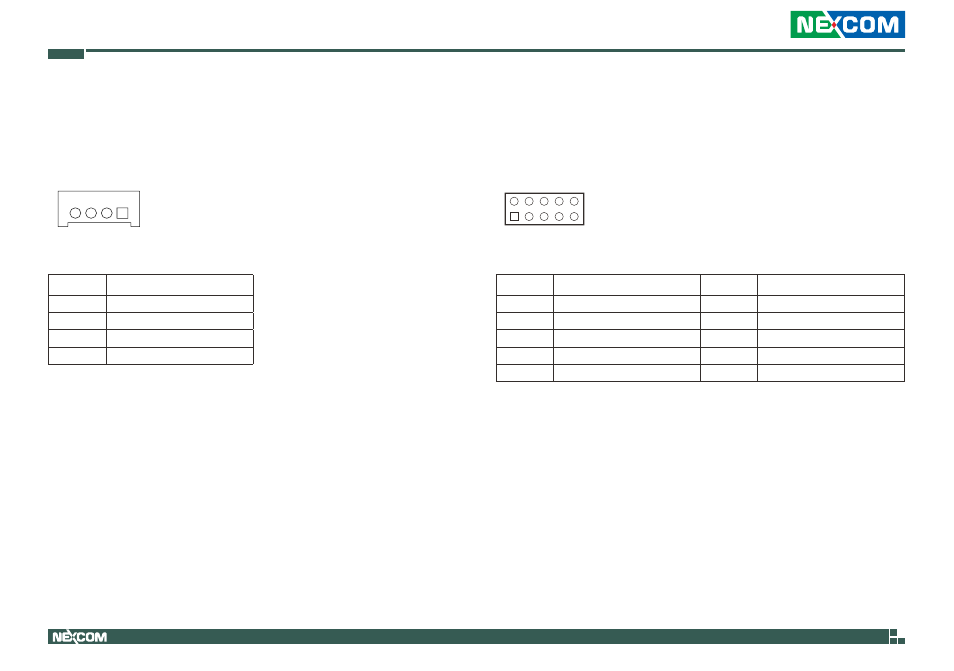

Chapter 2: Jumpers and Connectors
USB 7 Port
Connector type: 1x4 4-pin header, 2.0mm pitch
Connector location: J5
Pin Definition
1 +5V_USB
2 USB_7N
3 USB_7P
4 GND
4 1
COM2 RS232
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: J2
1 9
2 10
Pin Definition Pin Definition
1 SP_DCD2 2 SP_RXD2
3 SP_TXD2 4 SP_DTR2
5 GND 6 SP_DSR2
7 SP_RTS2 8 SP_CTS2
9 SP_RI2 10 NC
