Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved 27 EBC 354 User Manual
Chapter 2 : Jumpers and Connectors

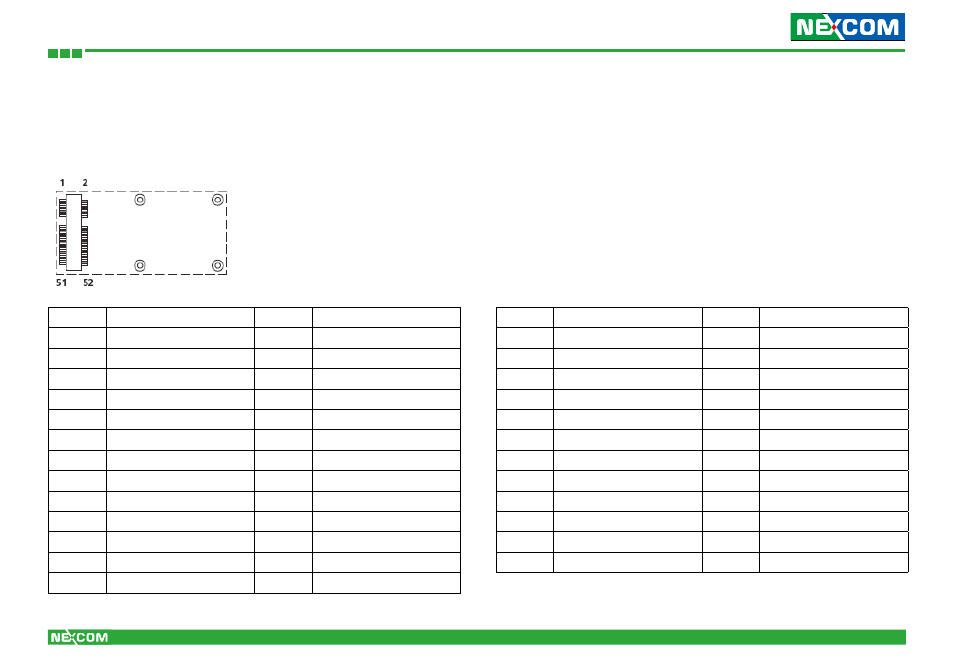

Mini-PCIe Slot
Connector location: CN5
Pin Definition Pin Definition
1 I_WAKE# 2 +3VSB_MINI1
3 NC 4 GND
5 NC 6 1V5
7 MINICARD1CLKREQ# 8 NC
9 GND 10 NC
11 G_MINIPCIECLKN 12 NC
13 G_MINIPCIECLKN 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 MINICARD1DIS#
21 GND 22 I_SLOTPLTRST#
23 I_PERXN3 24 +3VSB_MINI1
25 I_PERXP3 26 GND
27 GND 28 1V5
29 GND 30 SMB_CLK
31 I_PETXN3_C 32 SMB_DATA
33 I_PETXP3_C 34 GND
35 GND 36 MINI1USBN
37 GND 38 MINI1USBP
39 +3VSB_MINI1 40 GND
41 +3VSB_MINI1 42 NC
43 GND 44 NC
45 NC 46 NC
47 NC 48 1V5
49 NC 50 GND
51 NC 52 +3VSB_MINI1
