Chapter 2 : Jumpers and Connectors

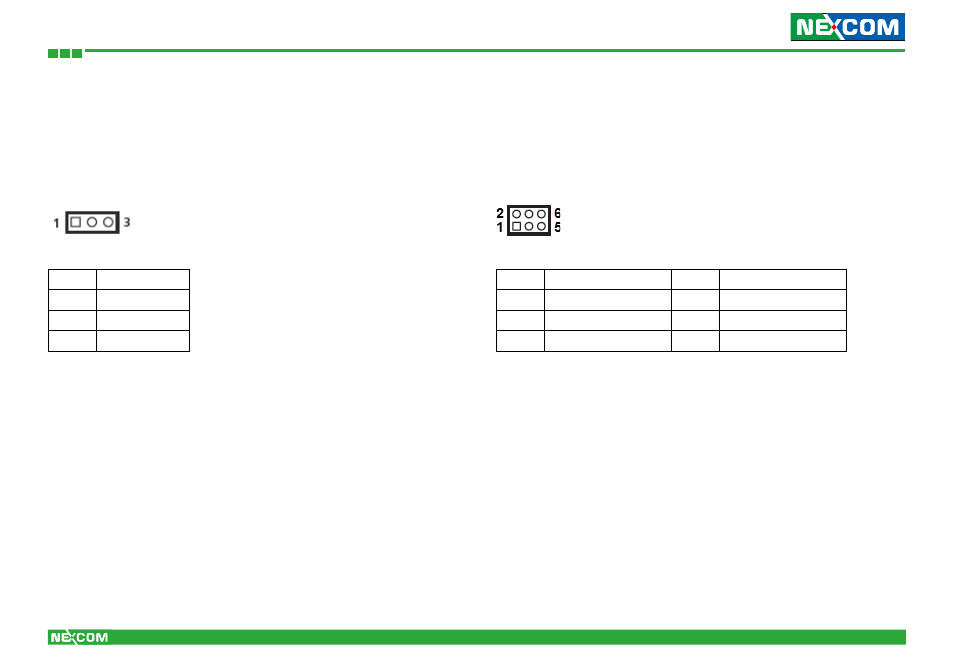

LVDS Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP12
Pin Definition
1 VCC3
2 VCC_SEL
3 VCC5
1-2 On: default
Panel Backlight Control Mode
Connector type: 2x3 6-pin header, 2.54mm pitch
Connector location: JP13
Pin Definition Pin Definition
1 CCFLBKLTCTRL 2 CCFL_PWM
3 PL_BKLTCTRL 4 CCFLBKLTCTRL
5 P_BKLTCTRL 6 PWM_DUTY
1-3 On: Analog signal output for dimming control. (default)
3-5 On: PWM signal output for dimming control.
