21
EBC 354 User Manual
Chapter 2 : Jumpers and Connectors

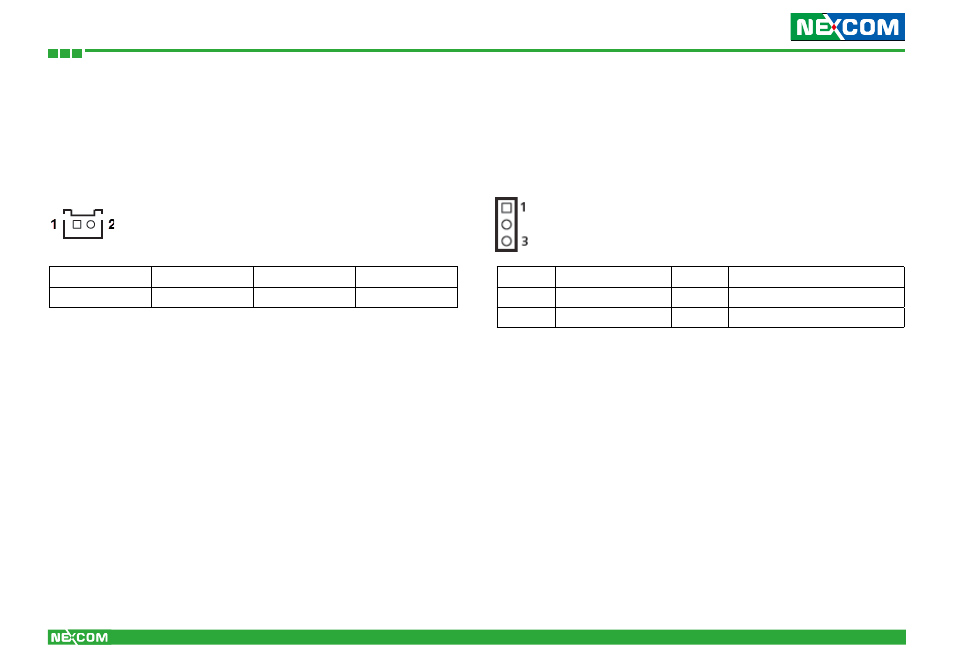

Battery Connector
Connector type: 1x2 JST, 2-pin header, 2.5mm pitch
Connector location: J6
SMBus Connector
Connector type: 1x3 3-pin header 2.00mm-M-180
Connector location: JP5
Pin
Definition
Pin
Definition
1
GND
2
BAT_C
Pin
Definition
Pin
Definition
1
SMBCLK_MAIN
2
SMBDATA_MAIN
3
GND
