Panel Descriptions
~ 5 ~
ASP-88

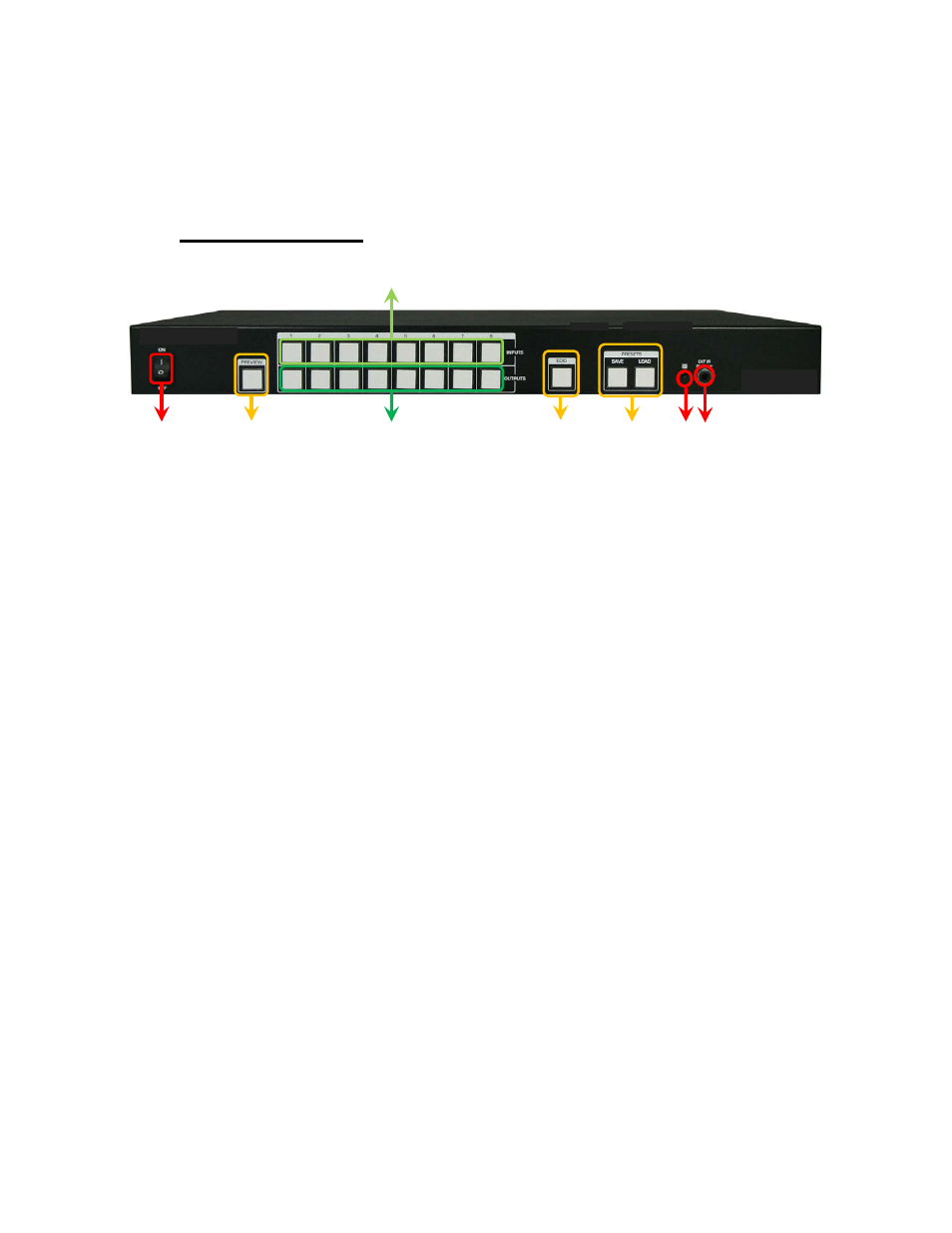

Front Panel
1. Power: power on/off switch
2. PREVIEW Button: press PREVIEW to watch input/output mapping. This function is active
when the button is bright
3. INPUT Buttons: press respective button to select input port 1 to 8
4. OUTPUT Buttons: press respective button to select output 1 to 8
5. EDID Button: press EDID button to enter EDID operation (for more detail please see EDID
learning section in page 17). This function is active when the button is bright
6. PRESETS Buttons: Save the current input/output mapping to presets or load one of the
preset input/output mappings to current configuration by pressing SAVE or LOAD
button respectively
7. IR: infrared sensor to receive any IR commands from the IR remote control
8. EXT IR Receiver: plug in an IR receiver here to receive any IR commands from the IR remote
control
Panel Descriptions
1 2 4 5 6 7 8
3
