Method C: Software control through RS-232 or USB port

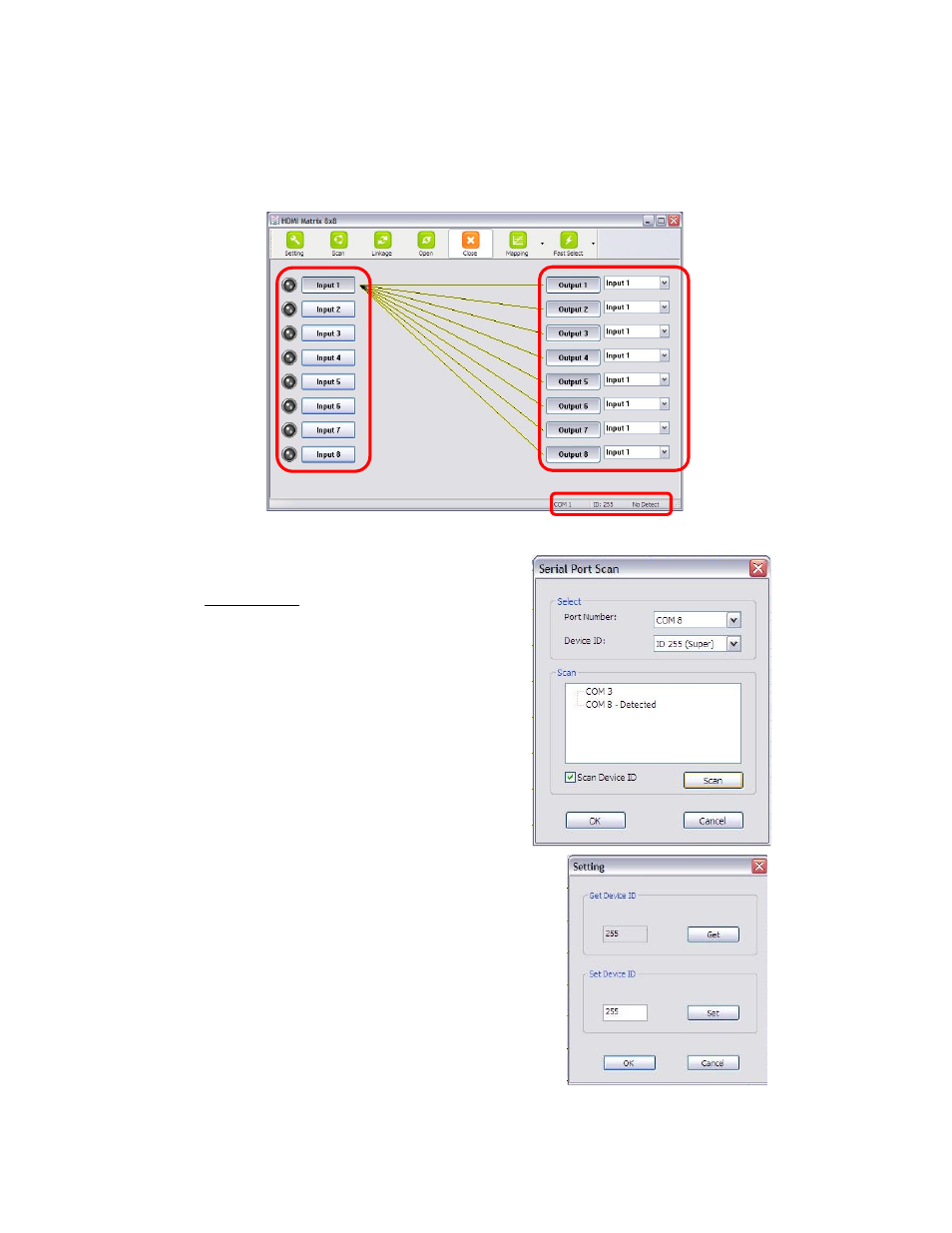

Software Control Menu
1. Scan button
Serial Port Scan
Press Scan button, the machine will scan the all
com port and show them.
Select the RS232 serial port connected to the
machine. And set device ID 255 is for all device.
Only the same device id or 255 can get the
command you sent.
Press OK. Get the new status from the machine
you select.
2. Setting button
Press Get button to read back device ID.
Press Set button to write device ID.
3. Linkage button
Press Linkage button to read back all status.
4. Open/Close button
HDMI input
source selection
mapping area
HDMI output
port selection
mapping area
Status Indicator
